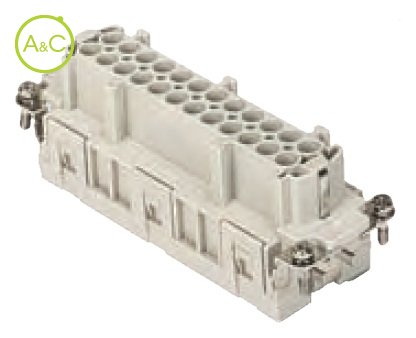

Inserts, 20 + 4(aux)P+ PE, crimp connections
Do you have any questions about this product?
More info on this brand:
Ilme
![Ilme](https://www.ac-solutions.be/themes/default/images/arrow.png)
- General
Article Number | CMCEF 10 |
Pollution Degree | 3 |
Number Of Poles | 20 |
Connection Type | Crimp connection |
Contact Type | Female |
Required Crimp Contacts | CCFA 0.3, CCFA 0.5, CCFA 0.7, CCFA 1.0, CCFA 1.5, CCFA 2.5, CCFA 3.0, CCFA 4.0, CCFD 0.3, CCFD 0.5, CCFD 0.7, CCFD 1.0, CCFD 1.5, CCFD 2.5, CCFD 3.0, CCFD 4.0, CCFC 0.3, CCFC 0.5, CCFF 0.3, CCFF 0.5, CCF2D 0.3, CCF2D 0.5, CCF2D 0.7, CCF2D 1.0, CCF2D 1.5, CCF2D 2.5, CCF2D 3.0, CCF2D 4.0, CCFJD 0.3, CCFJD 0.5, CCFJD 0.7, CCFJD 1.0, CCFJD 1.5, CCFJD 2.5, CCFJD 3.0, CCFJD 4.0 |
Extra Information | Contact insert without contacts |
Ambient Lower Temperature | -40 °C |
Ambient Upper Temperature | 125 °C |
Pin Numbers | 1-24 |
Required Housing |
C-type size 104.62 W-type 104.62 |
Diameter Male Contact | 2.5 mm |
Inflammability Class Of Insulation Material Acc. With Ul94 | V0 |
Material Insert | Thermoplastic |
Max. Rated Current | 16 A |
Nominal Rated Voltage | 830 V |
Over Voltage Category | III |
Rated Surge Voltage | 8 kV |
Characteristics differ between variants of a connector
