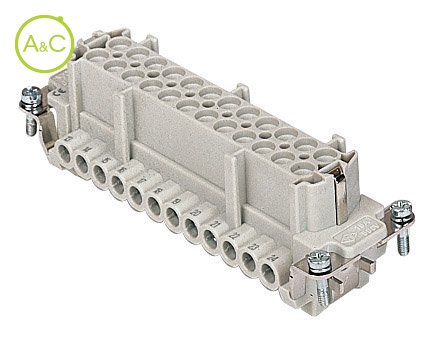

Inserts, 48P + PE, Screw terminal connection
Do you have any questions about this product?
More info on this brand:
Ilme
![Ilme](https://www.ac-solutions.be/themes/default/images/arrow.png)
- General
Article Number | CNEF 24 TX |
Pollution Degree | 3 |
Number Of Poles | 48 |
Connection Type | Screw connection |
Contact Type | Female |
Extra Information | With protective conductor |
Ambient Lower Temperature | -40 °C |
Ambient Upper Temperature | 125 °C |
Pin Numbers | 1-24 |
Min. Cross Section With End Sleeve | 0.25 mm² |
Max. Cross Section With End Sleeve | 2.5 mm² |
Required Housing |
C-type size 104.62 W-type 104.62 |
Diameter Male Contact | 2.5 mm |
Inflammability Class Of Insulation Material Acc. With Ul94 | V0 |
Material Insert | Thermoplastic |
Material Contact | Brass |
Plating Of Contact | Silver |
Max. Rated Current | 16 A |
Nominal Rated Voltage | 500 V |
Over Voltage Category | III |
Rated Surge Voltage | 6 kV |
Characteristics differ between variants of a connector
