Pin contact AWG 26 to 16
Do you have any questions about this product?
More info on this brand:
JST
![JST](https://www.ac-solutions.be/themes/default/images/arrow.png)
Applicable Wire
- AWG 20 to 16
- AWG 22+22 - 20+20
- AWG 26 to 20
Article Number | SLM-01T-P1.3E |
Upper Temperature | +90 °C |
Lower Temperature | -25 °C |
General Description | 4.5mm Pitch Disconnectable Crimp Style |
Applicable Wire Size | 0.13 to 0.5 (AWG #26 to #20) mm² |
Connection Type | Wire to Wire Connectors |
Pitch / Style | 4.50 mm |
Rated Current (ac/dc) | 10 A |
Rated Voltage (ac/dc) | 300 V |
Remark* | Secure locking device |
Characteristics differ between variants of a connector

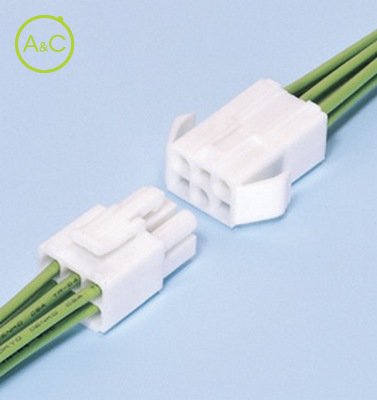

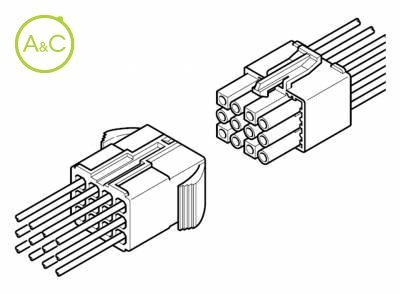

The contacts for the compact EL connector can be easily inserted into the connector housings. The plug housing and the receptacle housing can be smoothly mated even if they are mechanically distorted.
Easy insertion and secure installation of contacts
Each contact has a pair of locking lances so that the contact can be installed and symmetrically locked in the housing. A lance retraction prevention mechanism is also provided so that the contact will be securely held in the housing. The lances have sufficient clearance to allow the contacts to be easily inserted into the housing.
A smooth connection even when pried during mating
The contact is held by the housing along a wide surface area. This reduces the deflection of the contact and ensures a smooth, safe connection even when pried during mating.
Durable arm lock mechanism
The arm lock mechanism of the housing is slit to prevent stress concentration during connection. Thus, it is highly durable and will survive repeated matings.
Two contact styles
Two different kinds of crimp contacts are available for convenient branching or internal jumpering.
Standards
UL Recognized E60389
CSA Certified LR20812
TUV R75052
RoHS Compliant
