Side Entry Header SMT
Do you have any questions about this product?
More info on this brand:
JST
JST
Number Of Poles
- 2
| Article Number | SM02B-SFKH |
| Number Of Contacts | 2 |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| General Description | 1.8mm Pitch Disconnectable Crimp Style |
| Connection Type | Printed Circuit Board Connectors |
| Pitch / Style | 1.80 mm |
| Rated Current (ac/dc) | 3.2 A |
| Rated Voltage (ac/dc) | 350 V |
| Pcb Mount Style | Surface Mount Technology (SMT) |
| Remark* | Secure locking device |
Characteristics differ between variants of a connector

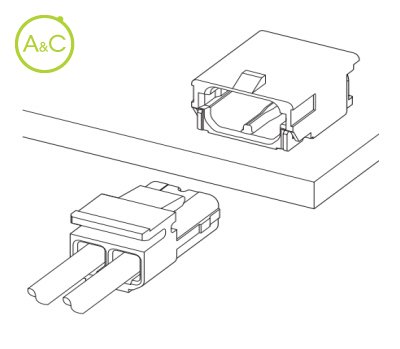

JST introduces the new SFK connector series, this 1.8mm pitch wire to board connector was originally designed for the power supply of LED backlight in LCD televisions.

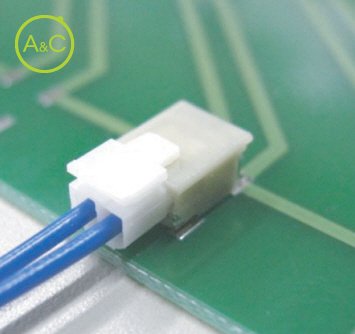

This crimp style 2-position surface mount connector has a secure locking device and a voltage rating of 350V AC,DC. Available in embossed tape reel packaging to enable high speed processing.
Withstand high voltage
Secure lock
Halogen free
EC directive 2002/95/EC (the RoHS Directive) - Compliant
