Side Entry Header SMT

XSR CONNECTOR

Do you have any questions about this product?

Contact our connector specialist

Send me a personalized quote

Download product sheet

More info on this brand:

JST

Number Of Poles

Article Number	SM02B-XSRS-ETB
Number Of Contacts	2
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	0.6mm Pitch Disconnectable IDC
Connection Type	Printed Circuit Board Connectors
Pitch / Style	0.60 mm
Rated Current (ac/dc)	0.2 A
Rated Voltage (ac/dc)	30 V
Pcb Mount Style	Surface Mount Technology (SMT)

Article Number	SM04B-XSRS-ETB
Number Of Contacts	4
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	0.6mm Pitch Disconnectable IDC
Connection Type	Printed Circuit Board Connectors
Pitch / Style	0.60 mm
Rated Current (ac/dc)	0.2 A
Rated Voltage (ac/dc)	30 V
Pcb Mount Style	Surface Mount Technology (SMT)

Article Number	SM06B-XSRS-ETB
Number Of Contacts	6
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	0.6mm Pitch Disconnectable IDC
Connection Type	Printed Circuit Board Connectors
Pitch / Style	0.60 mm
Rated Current (ac/dc)	0.2 A
Rated Voltage (ac/dc)	30 V
Pcb Mount Style	Surface Mount Technology (SMT)

Article Number	SM10B-XSRS-ETB
Number Of Contacts	10
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	0.6mm Pitch Disconnectable IDC
Connection Type	Printed Circuit Board Connectors
Pitch / Style	0.60 mm
Rated Current (ac/dc)	0.2 A
Rated Voltage (ac/dc)	30 V
Pcb Mount Style	Surface Mount Technology (SMT)

Article Number	SM16B-XSRS-ETB
Number Of Contacts	16
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	0.6mm Pitch Disconnectable IDC
Connection Type	Printed Circuit Board Connectors
Pitch / Style	0.60 mm
Rated Current (ac/dc)	0.2 A
Rated Voltage (ac/dc)	30 V
Pcb Mount Style	Surface Mount Technology (SMT)

Article Number	SM20B-XSRS-ETB
Number Of Contacts	20
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	0.6mm Pitch Disconnectable IDC
Connection Type	Printed Circuit Board Connectors
Pitch / Style	0.60 mm
Rated Current (ac/dc)	0.2 A
Rated Voltage (ac/dc)	30 V
Pcb Mount Style	Surface Mount Technology (SMT)

Article Number	SM22B-XSRS-ETB
Number Of Contacts	22
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	0.6mm Pitch Disconnectable IDC
Connection Type	Printed Circuit Board Connectors
Pitch / Style	0.60 mm
Rated Current (ac/dc)	0.2 A
Rated Voltage (ac/dc)	30 V
Pcb Mount Style	Surface Mount Technology (SMT)

Characteristics differ between variants of a connector

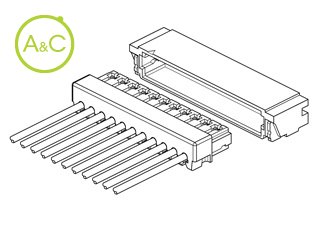

This is the world's smallest 0.6mm pitch ID connector for deSCrete wires. This wire to board miniaturized connector has a mounting height of 1.45mm and depth of 3.0mm. Space saving Twin U-slot insulation displacement section New strain relief structure Suitable for fine wires Applicable to automatic ID machines Standards UL Recognized E60389 CSA Certified LR20812 RoHS Compliant
