Side Entry Shrouded Header SMT

GHD CONNECTOR

Do you have any questions about this product?

Contact our connector specialist

Send me a personalized quote

Download product sheet

More info on this brand:

JST

Number Of Poles

Article Number	SM20B-GHDS-GAN-TF
Number Of Contacts	20
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	1.25mm Pitch Disconnectable Crimp Style
Connection Type	Printed Circuit Board Connectors
Pitch / Style	1.25 mm
Rated Current (ac/dc)	1.0 A
Rated Voltage (ac/dc)	50 V
Pcb Mount Style	Surface Mount Technology (SMT)

Article Number	SM22B-GHDS-GAN-TF
Number Of Contacts	22
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	1.25mm Pitch Disconnectable Crimp Style
Connection Type	Printed Circuit Board Connectors
Pitch / Style	1.25 mm
Rated Current (ac/dc)	1.0 A
Rated Voltage (ac/dc)	50 V
Pcb Mount Style	Surface Mount Technology (SMT)

Article Number	SM30B-GHDS-GAN-TF
Number Of Contacts	30
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	1.25mm Pitch Disconnectable Crimp Style
Connection Type	Printed Circuit Board Connectors
Pitch / Style	1.25 mm
Rated Current (ac/dc)	1.0 A
Rated Voltage (ac/dc)	50 V
Pcb Mount Style	Surface Mount Technology (SMT)

Characteristics differ between variants of a connector

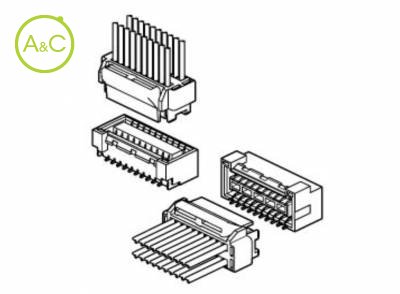

To meet the requirement of the high density mounting PC board of flat panel TV, AV equipments etc., this connector is designed to the double-row type of 1.25mm pitch. It's operability is very well, in spite of the small size. Secure locking structure Low insertion force Prevention of contact deformation Suction area for picking up RoHS Compliant
