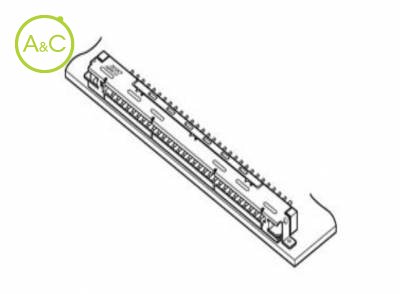

Receptacle SMT
Do you have any questions about this product?
More info on this brand:
JST
![JST](https://www.ac-solutions.be/themes/default/images/arrow.png)
Number Of Poles
- 30
Article Number | SM30B-LDYGLS-01-TB |
Number Of Contacts | 30 |
Upper Temperature | +85 °C |
Lower Temperature | -25 °C |
General Description | 1.0mm Pitch Wire-to-Board Crimp Style |
Connection Type | Printed Circuit Board Connectors |
Pitch / Style | 1.00 mm |
Rated Current (ac/dc) | 0.3 A |
Rated Voltage (ac/dc) | 200 V |
Pcb Mount Style | Surface Mount Technology (SMT) |
Characteristics differ between variants of a connector
This wire-to-board connector is designed for Internal I/O port in LCD Monitor/TV, and is with secure locking device that prevents the connector from coming off by wiring operation and or vibration.
Impedance matching corresponding to high speed differential transmission
Metal lock structure
With metal shell
RoHS Compliant
