Applicable Wire
- AWG 26 to 20
| Article Number | SMF-01T-1.0 | SMF-01T-1.3 |
| Upper Temperature | +85 °C | +85 °C |
| Lower Temperature | -25 °C | -25 °C |
| General Description | Single-Circuit Disconnectable Crimp Style | Single-Circuit Disconnectable Crimp Style |
| Applicable Wire Size | 0.13 to 0.5(AWG #26 to #20) mm² | 0.13 to 0.5(AWG #26 to #20) mm² |
| Connection Type | Printed Circuit Board Connectors | Printed Circuit Board Connectors |
| Pitch / Style | Single-Circuit mm | Single-Circuit mm |
| Rated Current (ac/dc) | 5 A | 5 A |
| Pcb Mount Style | Through-hole Technology (THT) | Through-hole Technology (THT) |
| Remark* | Applicable pin: RT-01T-1.0B | Applicable pin: RT-01T-1.3B |
Characteristics differ between variants of a connector

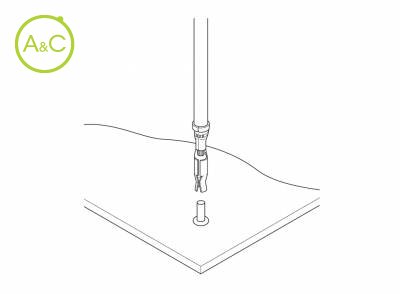

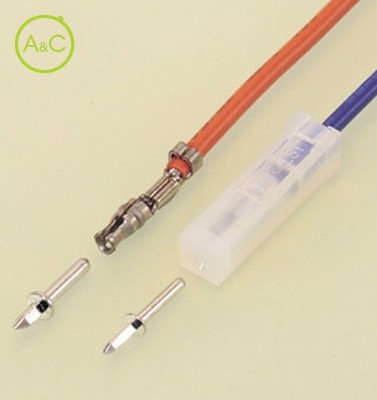

This small single-circuit connector connects to 1.0mm (.039") and 1.3mm (.051") diameter pins and requires only minimal space for connection of wires to high-density printed circuit boards.
The SMF connector has a funnel shaped lead-in to ease insertion and to ensure a balance with its high retaining force.
Standards
UL Recognized E60389
CSA Certified LR20812
RoHS Compliant
