Female Terminal
Do you have any questions about this product?
More info on this brand:
JST
![JST](https://www.ac-solutions.be/themes/default/images/arrow.png)
Applicable Wire
- AWG 22 to 20
Article Number | SNAC3-A021T-M0.64 |
Upper Temperature | +105 °C |
Lower Temperature | -30 °C |
General Description | 2.20mm Pitch Disconnectable Crimp Style |
Applicable Wire Size | 0.3 to 0.5 (AWG #22 to #20) mm² |
Connection Type | Automotive |
Pitch / Style | 2.20 mm |
Rated Current (ac/dc) | 5 C, DC (0.5mm2, Single Circuit) A |
Rated Voltage (ac/dc) | 50 V |
Pcb Mount Style | Surface Mount Technology (SMT) |
Characteristics differ between variants of a connector

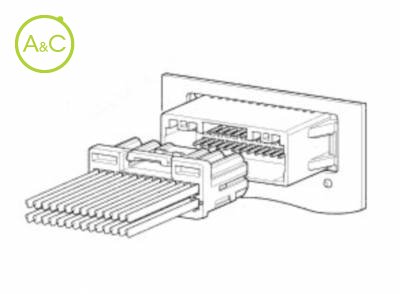

Surface mounting type connector of bottom entry type developed for instruments for automobile.
High reliability
Using the tried and true terminal ensures high performance and high reliability. The retainer (secondary lock) is provided for automobile, and reliability is improved.
Surface mounting
Corresponding to the surface mounting, workability is improved.
RoHS Compliant
