Contact AWG 32 to 28
Do you have any questions about this product?
More info on this brand:
JST
![JST](https://www.ac-solutions.be/themes/default/images/arrow.png)
Applicable Wire
- AWG 32 to 28
Article Number | SSH-003GA-P0.2 |
Upper Temperature | +85 °C |
Lower Temperature | -25 °C |
General Description | 1.0mm Pitch Disconnectable Crimp Style |
Applicable Wire Size | 0.032 to 0.08 (AWG #32 to #28) mm² |
Connection Type | Printed Circuit Board Connectors |
Pitch / Style | 1.00 mm |
Rated Current (ac/dc) | 1.0 A |
Rated Voltage (ac/dc) | 50 V |
Pcb Mount Style | Surface Mount Technology (SMT) |
Characteristics differ between variants of a connector

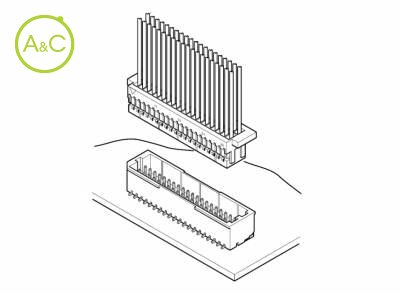

Ultra-compact, double-row design. Although this shrouded header has locking features for its mating receptacle, there are no holes in the header shroud that would adversely effect vacuum gripping equipment.
The receptacle has protrusions on both ends for an operator to disengage the receptacle from the header without holding the wires.

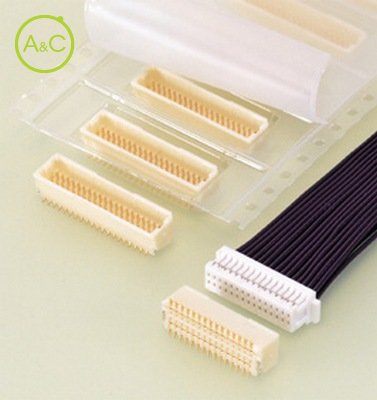

Ultra-compact, low profile design
The SHD connector is compact with a mounting height of 6.3mm (.248") for top entry type and 5.5mm (.217") for side entry type, and a width of 5.0mm (.197") for top entry type and 5.1mm (.201") for side entry type.
Anti-misinsertion feature
Ribs and grooves on the header and receptacle prevent misinsertion and distortion during mating and unmating.
Receptacles with protrusions
The receptacle has protrusions on both ends for an operator to disengage the receptacle from the header without holding the wires.
Header designed for vacuum pick and place robotics
Although the shrouded header has locking features for its mating receptacle, there are no holes in the header shroud that would adversely effect vacuum gripping equipment.
Since there is enough flat surface for secure vacuum gripping, this miniature surface mount connector is versatile for designers and economic for manufacturing.
Standards
UL Recognized E60389
CSA Certified LR20812
RoHS Compliant
