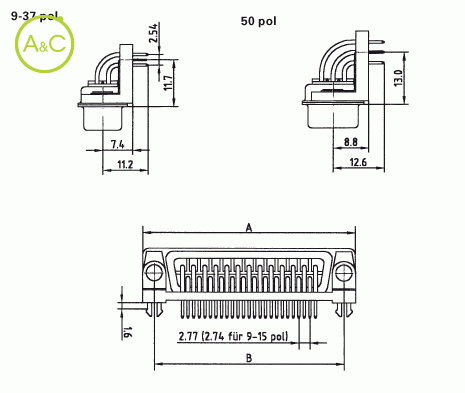

Dip solder version 90°

Bracket with through hole for grounding and UNC 4-40 thread
With stamped contacts

ST 09 166 G.TE4B

ST 09 166 G.TE4B

Do you have any questions about this product?

Contact our connector specialist

Send me a personalized quote

Download product sheet

More info on this brand:

Number Of Poles

9
15
25
37

Article Number	ST 09 166 G.TE4B**
Number Of Contacts	9
Upper Temperature	+ 125 °C
Lower Temperature	-55 °C
Contact Plating	Gold over Nickel, or selective gold
Contact Material	Brass and Copper alloy
Remark*	For the requested quality class please replace the "." at the end of the article no. By using 1,2,3
Remark**	For M3 thread please replace the number 4 of the article number by the number 3 For through hole 3,1 mm please replace the number 4 of the article number by the number 0
Test Voltage	1 V ~
Insulation Resistance	1010 MΩ
Current Rating	5
Contact Resistance	≤ 10 m
Gender	Female
Insulator Material	Glass fibre reinforced polybutylene-terephtalate (PBTP) self-extinguishing UL 94 V-0 rated
Shell	Steel, tin-plated
Mating And Unimating Force	0.3 - 0.7
Air And Creepage Distance	≥ 0.9 mm, VDE 0110 rated
Termination Type	Dip solder 90°
Quality Class*	Class 1 = 500 mating cycles Class 2 = 200 mating cycles Class 3 = 50 mating cycles

Article Number	ST 15 166 G.TE4B**
Number Of Contacts	15
Upper Temperature	+ 125 °C
Lower Temperature	-55 °C
Contact Plating	Gold over Nickel, or selective gold
Contact Material	Brass and Copper alloy
Remark*	For the requested quality class please replace the "." at the end of the article no. By using 1,2,3
Remark**	For M3 thread please replace the number 4 of the article number by the number 3 For through hole 3,1 mm please replace the number 4 of the article number by the number 0
Test Voltage	1 V ~
Insulation Resistance	1010 MΩ
Current Rating	5
Contact Resistance	≤ 10 m
Gender	Female
Insulator Material	Glass fibre reinforced polybutylene-terephtalate (PBTP) self-extinguishing UL 94 V-0 rated
Shell	Steel, tin-plated
Mating And Unimating Force	0.3 - 0.7
Air And Creepage Distance	≥ 0.9 mm, VDE 0110 rated
Termination Type	Dip solder 90°
Quality Class*	Class 1 = 500 mating cycles Class 2 = 200 mating cycles Class 3 = 50 mating cycles

Article Number	ST 25 166 G.TE4B**
Number Of Contacts	25
Upper Temperature	+ 125 °C
Lower Temperature	-55 °C
Contact Plating	Gold over Nickel, or selective gold
Contact Material	Brass and Copper alloy
Remark*	For the requested quality class please replace the "." at the end of the article no. By using 1,2,3
Remark**	For M3 thread please replace the number 4 of the article number by the number 3 For through hole 3,1 mm please replace the number 4 of the article number by the number 0
Test Voltage	1 V ~
Insulation Resistance	1010 MΩ
Current Rating	5
Contact Resistance	≤ 10 m
Gender	Female
Insulator Material	Glass fibre reinforced polybutylene-terephtalate (PBTP) self-extinguishing UL 94 V-0 rated
Shell	Steel, tin-plated
Mating And Unimating Force	0.3 - 0.7
Air And Creepage Distance	≥ 0.9 mm, VDE 0110 rated
Termination Type	Dip solder 90°
Quality Class*	Class 1 = 500 mating cycles Class 2 = 200 mating cycles Class 3 = 50 mating cycles

Article Number	ST 37 166 G.TE4B**
Number Of Contacts	37
Upper Temperature	+ 125 °C
Lower Temperature	-55 °C
Contact Plating	Gold over Nickel, or selective gold
Contact Material	Brass and Copper alloy
Remark*	For the requested quality class please replace the "." at the end of the article no. By using 1,2,3
Remark**	For M3 thread please replace the number 4 of the article number by the number 3 For through hole 3,1 mm please replace the number 4 of the article number by the number 0
Test Voltage	1 V ~
Insulation Resistance	1010 MΩ
Current Rating	5
Contact Resistance	≤ 10 m
Gender	Female
Insulator Material	Glass fibre reinforced polybutylene-terephtalate (PBTP) self-extinguishing UL 94 V-0 rated
Shell	Steel, tin-plated
Mating And Unimating Force	0.3 - 0.7
Air And Creepage Distance	≥ 0.9 mm, VDE 0110 rated
Termination Type	Dip solder 90°
Quality Class*	Class 1 = 500 mating cycles Class 2 = 200 mating cycles Class 3 = 50 mating cycles

Characteristics differ between variants of a connector
