Applicable Wire
- AWG 28 to 24
Article Number | SZPD-002T-P0.3 |
Upper Temperature | +85 °C |
Lower Temperature | -25 °C |
General Description | 1.5mm Pitch Disconnectable Crimp Style |
Applicable Wire Size | 0.08 to 0.21 (AWG #28 to #24) mm² |
Connection Type | Printed Circuit Board Connectors |
Pitch / Style | 1.50 mm |
Rated Current (ac/dc) | 2 A |
Rated Voltage (ac/dc) | 100 V |
Pcb Mount Style | Surface Mount Technology (SMT) |
Characteristics differ between variants of a connector

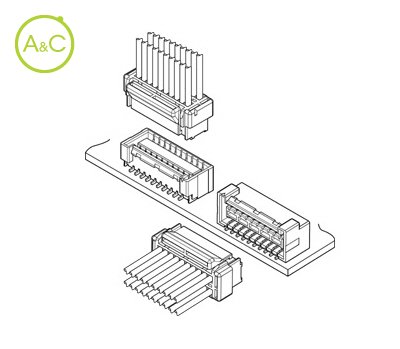

JST introduces the dual row ZPD connector series, with a pitch size of 1.5mm, the ZPD housing features a secure locking device, which prevents accidental diSConnection.
In order to meet the demands of high density PCB designing, this wire to board diSConnectable crimp style connector series has a height of 9.2mm for the side entry configuration. Available in 10 to 30 circuits, this SMT series is also available in embossed tape reel packaging to enable high speed processing.
Secure locking structure
Low insertion force
Suction area for picking up
Engagement enhanced design
RoHS Compliant
