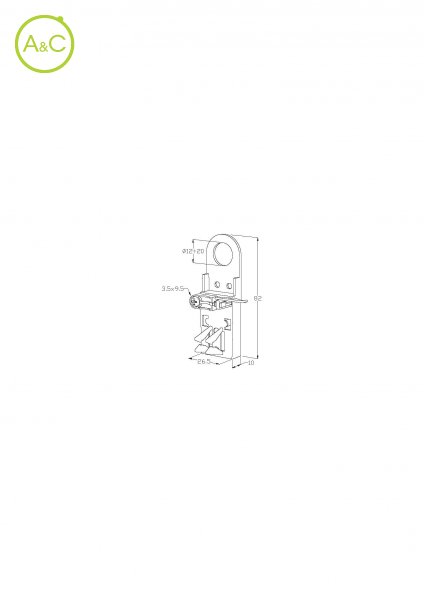

Terminal block support with cable clamp

THA.016.A1A

THA.016.A1A

Do you have any questions about this product?

Contact our connector specialist

Send me a personalized quote

Download product sheet

More info on this brand:

∅ Cable Gland Hole

12
16
20

Article Number	THA.016.A1A	THA.016.A1B
Upper Temperature	+125 °C	+125 °C
Lower Temperature	-40 °C	-40 °C
Min-max Cable Diameter	max 10,0 mm	max 10,0 mm
Body	PA66 GF UL94 V2 GWT 850°C black	PA66 GF UL94 V2 GWT 850°C black
Screw	∅ 3.5 x 9.5 self-screwing steel zinc plated	∅ 3.5 x 9.5 self-screwing steel zinc plated
Standards	EN60598-1-2004+A1:2006	EN60598-1-2004+A1:2006

Article Number	THA.016.A2A	THA.016.A2B
Upper Temperature	+125 °C	+125 °C
Lower Temperature	-40 °C	-40 °C
Min-max Cable Diameter	max 10,0 mm	max 10,0 mm
Body	PA66 GF UL94 V2 GWT 850°C black	PA66 GF UL94 V2 GWT 850°C black
Screw	∅ 3.5 x 9.5 self-screwing steel zinc plated	∅ 3.5 x 9.5 self-screwing steel zinc plated
Standards	EN60598-1-2004+A1:2006	EN60598-1-2004+A1:2006

Article Number	THA.016.A3A	THA.016.A3B
Upper Temperature	+125 °C	+125 °C
Lower Temperature	-40 °C	-40 °C
Min-max Cable Diameter	max 10,0 mm	max 10,0 mm
Body	PA66 GF UL94 V2 GWT 850°C black	PA66 GF UL94 V2 GWT 850°C black
Screw	∅ 3.5 x 9.5 self-screwing steel zinc plated	∅ 3.5 x 9.5 self-screwing steel zinc plated
Standards	EN60598-1-2004+A1:2006	EN60598-1-2004+A1:2006

Characteristics differ between variants of a connector
