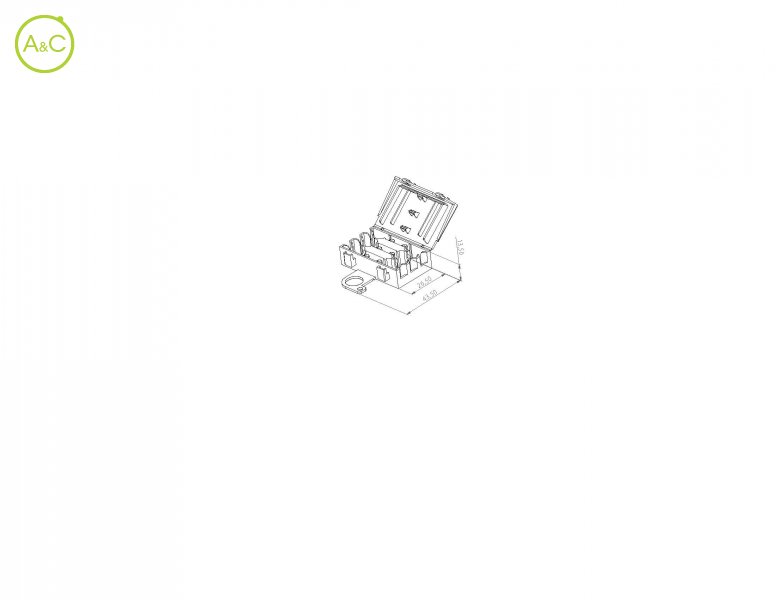

IP20 protection, Junction boxes empty and with terminal blocks
Do you have any questions about this product?
More info on this brand:
Techno
Techno
Number Of Poles
- 2
- 3
| Article Number | THB.100.A2B | THP.100.A2B | THB.100.A4B |
| Number Of Contacts | 2 | 2 | 2 |
| Protection Degree | IP20 | IP20 | IP20 |
| Upper Temperature | +125 °C | +125 °C | +125 °C |
| Lower Temperature | -40 °C | -40 °C | -40 °C |
| Rated Voltage | 450 | 450 | 450 |
| Rated Current | 24 A | 24 A | 24 A |
| Contact Terminal | Std contact | Piercing clip terminals max 1,5 mm² | WP contact for cable section < 1,0 mm² |
| Terminals | Screw | Piercing | Screw |
| Cable Section | max 2,5 mm² | 0,5 - 1,5 mm² | max 2,5 mm² |
| Min-max Cable Diameter | single cables mm | single cables mm | single cables mm |
| Cable Entries/exits | 2 ways | 2 ways | 2 ways |
| T Marking | T85 °C | T85 °C | T85 °C |
| Tracking Index | PTI 250 | PTI 250 | PTI 250 |
| Terminal Block Housing | PA66 UL94 V2 GWT 850°C natural | PA66 UL94 V2 GWT 850°C natural | PA66 UL94 V2 GWT 850°C natural |
| Contact Screw Terminals | Brass nickel plated | Brass nickel plated | Brass nickel plated |
| Standard Screws | M3 steel zinc plated | M3 steel zinc brass plated | M3 steel zinc plated |
| Standards | EN60998-1:2004 EN60998-2-1:2004 | EN60998-1:2004 EN60998-2-1:2004 | EN60998-1:2004 EN60998-2-1:2004 |
Characteristics differ between variants of a connector
