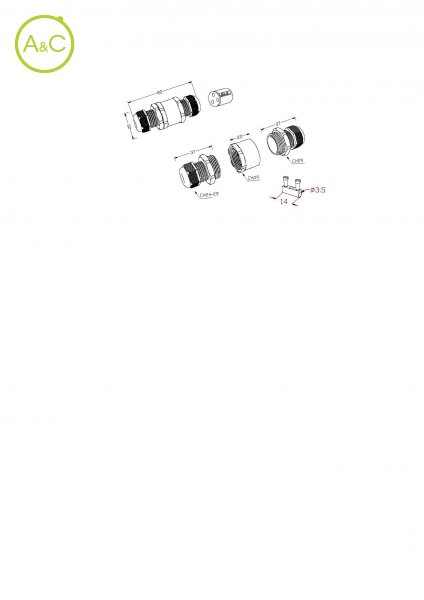

High protection In-line and junction with innovative cable glands

Type L, WP Contact

Do you have any questions about this product?

Contact our connector specialist

Send me a personalized quote

Download product sheet

More info on this brand:

Techno

Number Of Poles

Article Number	THB.390.E2C.1	THB.390.E2C.2	THB.390.E2C.3
Number Of Contacts	2	2	2
Protection Degree	IP68 2 bar	IP68 2 bar	IP68 2 bar
Upper Temperature	+125 °C	+125 °C	+125 °C
Lower Temperature	-40 °C	-40 °C	-40 °C
Rated Voltage	450	450	450
Rated Current	24 A	24 A	24 A
Product Shape (type: I, L, T, Y)	L	L	L
Contact Terminal	WP contact for cable section < 1,0 mm²	WP contact for cable section < 1,0 mm²	WP contact for cable section < 1,0 mm²
Terminals	Screw	Screw	Screw
Cable Section	max 2,5 mm²	max 2,5 mm²	max 2,5 mm²
Cable Diameter Min-max A	7,0 - 10,5 mm	10,5 - 14,0 mm	14,0 - 17,0 mm
Cable Entries/exits	2 ways	2 ways	2 ways
T Marking	T125 °C	T125 °C	T125 °C
Protection Degree Details	20 - 50 m / 1 h	20 - 50 m / 1 h	20 - 50 m / 1 h
Tracking Index	PTI 250	PTI 250	PTI 250
Connector Housing	PA66 GF UL94 V0 GWT 960°C black - grey RAL 7035	PA66 GF UL94 V0 GWT 960°C black - grey RAL 7035	PA66 GF UL94 V0 GWT 960°C black - grey RAL 7035
Cable Glands	PA66 UL94 V2 GWT 850°C black - grey RAL 7035	PA66 UL94 V2 GWT 850°C black - grey RAL 7035	PA66 UL94 V2 GWT 850°C black - grey RAL 7035
Terminal Block Housing	PA66 GF UL94 V0 GWT 960°C black - brown	PA66 GF UL94 V0 GWT 960°C black - brown	PA66 GF UL94 V0 GWT 960°C black - brown
Co-moulded Seals	TPE Rubber	TPE Rubber	TPE Rubber
Contact Screw Terminals	Brass nickel plated	Brass nickel plated	Brass nickel plated
Standard / Piercing Screws	M3 steel zinc plated	M3 steel zinc plated	M3 steel zinc plated
Standards	EN60529:1991+A1:2000 EN60998-1:2004 EN60998-2-1:2004	EN60529:1991+A1:2000 EN60998-1:2004 EN60998-2-1:2004	EN60529:1991+A1:2000 EN60998-1:2004 EN60998-2-1:2004

Article Number	THB.390.E3C.1	THB.390.E3C.2	THB.390.E3C.3
Number Of Contacts	3	3	3
Protection Degree	IP68 2 bar	IP68 2 bar	IP68 2 bar
Upper Temperature	+125 °C	+125 °C	+125 °C
Lower Temperature	-40 °C	-40 °C	-40 °C
Rated Voltage	450	450	450
Rated Current	24 A	24 A	24 A
Product Shape (type: I, L, T, Y)	L	L	L
Contact Terminal	WP contact for cable section < 1,0 mm²	WP contact for cable section < 1,0 mm²	WP contact for cable section < 1,0 mm²
Terminals	Screw	Screw	Screw
Cable Section	max 2,5 mm²	max 2,5 mm²	max 2,5 mm²
Cable Diameter Min-max A	7,0 - 10,5 mm	10,5 - 14,0 mm	14,0 - 17,0 mm
Cable Entries/exits	2 ways	2 ways	2 ways
T Marking	T125 °C	T125 °C	T125 °C
Protection Degree Details	20 - 50 m / 1 h	20 - 50 m / 1 h	20 - 50 m / 1 h
Tracking Index	PTI 250	PTI 250	PTI 250
Connector Housing	PA66 GF UL94 V0 GWT 960°C black - grey RAL 7035	PA66 GF UL94 V0 GWT 960°C black - grey RAL 7035	PA66 GF UL94 V0 GWT 960°C black - grey RAL 7035
Cable Glands	PA66 UL94 V2 GWT 850°C black - grey RAL 7035	PA66 UL94 V2 GWT 850°C black - grey RAL 7035	PA66 UL94 V2 GWT 850°C black - grey RAL 7035
Terminal Block Housing	PA66 GF UL94 V0 GWT 960°C black - brown	PA66 GF UL94 V0 GWT 960°C black - brown	PA66 GF UL94 V0 GWT 960°C black - brown
Co-moulded Seals	TPE Rubber	TPE Rubber	TPE Rubber
Contact Screw Terminals	Brass nickel plated	Brass nickel plated	Brass nickel plated
Standard / Piercing Screws	M3 steel zinc plated	M3 steel zinc plated	M3 steel zinc plated
Standards	EN60529:1991+A1:2000 EN60998-1:2004 EN60998-2-1:2004	EN60529:1991+A1:2000 EN60998-1:2004 EN60998-2-1:2004	EN60529:1991+A1:2000 EN60998-1:2004 EN60998-2-1:2004

Characteristics differ between variants of a connector
