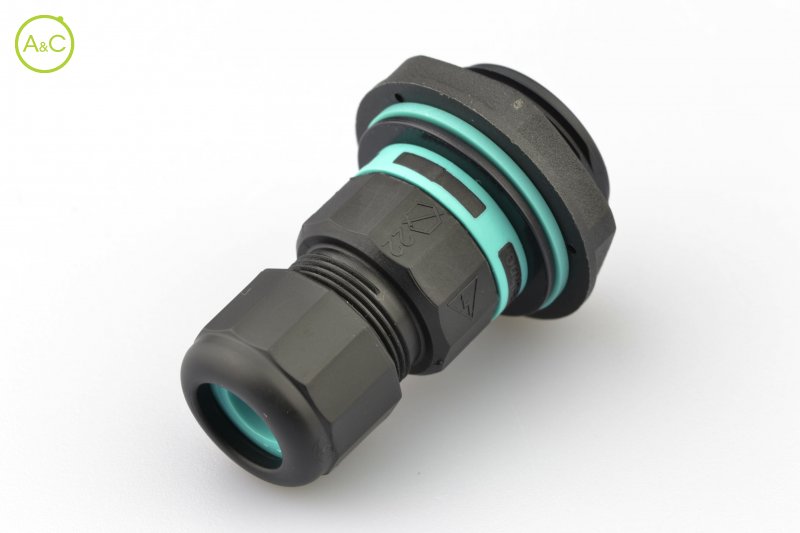

High protection in-line and junction panel mounting installation

Do you have any questions about this product?

Download product sheet

More info on this brand:

Article Number	THB.391.L2A	THP.391.L2A	THB.391.L2C
Number Of Contacts	2	2	2
Protection Degree	IP68 3 bar	IP68 3 bar	IP68 3 bar
Upper Temperature	+125 °C	+125 °C	+125 °C
Lower Temperature	-40 °C	-40 °C	-40 °C
Rated Voltage	450	450	450
Rated Current	17.5 A	17.5 A	17.5 A
Product Shape (type: I, L, T, Y)	I	I	I
Contact Terminal	End barrier contact	Piercing clip terminals max 1,5 mm²	WP contact for cable section < 1,0 mm²
Terminals	Screw	Piercing	Screw
Cable Section	max 4,0 mm²	0,5 - 1,5 mm²	max 2,5 mm²
Nm	7,0 - 12,0	7,0 - 12,0	7,0 - 12,0
Cable Entries/exits	2 ways	2 ways	2 ways
T Marking	T85 °C	T85 °C	T85 °C
Protection Degree Details	30 m / 2 h	30 m / 2 h	30 m / 2 h
Tracking Index	PTI 250	PTI 250	PTI 250
Cable Glands	PA66 UL94 V2	PA66 UL94 V2	PA66 UL94 V2
Terminal Block Housing	PA66 GF UL94 V0 GWT 960°C black - grey RAL 7035	PA66 GF UL94 V0 GWT 960°C black - grey RAL 7035	PA66 GF UL94 V0 GWT 960°C black - grey RAL 7035
Grommets	TPE Green	TPE Green	TPE Green
Co-moulded Seals	TPE Green	TPE Green	TPE Green
Contact Screw Terminals	Brass nickel plated	Brass nickel plated	Brass nickel plated
Standard / Piercing Screws	M3 steel zinc plated	M3 steel brass plated	M3 steel zinc plated
Standards	EN60529:1991+A1:2000 EN60998-1:2004 EN60998-2-1:2004	EN60529:1991+A1:2000 EN60998-1:2004 EN60998-2-1:2004	EN60529:1991+A1:2000 EN60998-1:2004 EN60998-2-1:2004

Article Number	THB.391.L3A	THP.391.L3A	THB.391.L3C
Number Of Contacts	3	3	3
Protection Degree	IP68 3 bar	IP68 3 bar	IP68 3 bar
Upper Temperature	+125 °C	+125 °C	+125 °C
Lower Temperature	-40 °C	-40 °C	-40 °C
Rated Voltage	450	450	450
Rated Current	17.5 A	17.5 A	17.5 A
Product Shape (type: I, L, T, Y)	I	I	I
Contact Terminal	End barrier contact	Piercing clip terminals max 1,5 mm²	WP contact for cable section < 1,0 mm²
Terminals	Screw	Piercing	Screw
Cable Section	max 4,0 mm²	0,5 - 1,5 mm²	max 2,5 mm²
Nm	7,0 - 12,0	7,0 - 12,0	7,0 - 12,0
Cable Entries/exits	2 ways	2 ways	2 ways
T Marking	T85 °C	T85 °C	T85 °C
Protection Degree Details	30 m / 2 h	30 m / 2 h	30 m / 2 h
Tracking Index	PTI 250	PTI 250	PTI 250
Cable Glands	PA66 UL94 V2	PA66 UL94 V2	PA66 UL94 V2
Terminal Block Housing	PA66 GF UL94 V0 GWT 960°C black - grey RAL 7035	PA66 GF UL94 V0 GWT 960°C black - grey RAL 7035	PA66 GF UL94 V0 GWT 960°C black - grey RAL 7035
Grommets	TPE Green	TPE Green	TPE Green
Co-moulded Seals	TPE Green	TPE Green	TPE Green
Contact Screw Terminals	Brass nickel plated	Brass nickel plated	Brass nickel plated
Standard / Piercing Screws	M3 steel zinc plated	M3 steel brass plated	M3 steel zinc plated
Standards	EN60529:1991+A1:2000 EN60998-1:2004 EN60998-2-1:2004	EN60529:1991+A1:2000 EN60998-1:2004 EN60998-2-1:2004	EN60529:1991+A1:2000 EN60998-1:2004 EN60998-2-1:2004

Article Number	THB.391.L4A	THP.391.L4A	THB.391.L4C
Number Of Contacts	4	4	4
Protection Degree	IP68 3 bar	IP68 3 bar	IP68 3 bar
Upper Temperature	+125 °C	+125 °C	+125 °C
Lower Temperature	-40 °C	-40 °C	-40 °C
Rated Voltage	450	450	450
Rated Current	17.5 A	17.5 A	17.5 A
Product Shape (type: I, L, T, Y)	I	I	I
Contact Terminal	End barrier contact	Piercing clip terminals max 1,5 mm²	WP contact for cable section < 1,0 mm²
Terminals	Screw	Piercing	Screw
Cable Section	max 4,0 mm²	0,5 - 1,5 mm²	max 2,5 mm²
Nm	7,0 - 12,0	7,0 - 12,0	7,0 - 12,0
Cable Entries/exits	2 ways	2 ways	2 ways
T Marking	T85 °C	T85 °C	T85 °C
Protection Degree Details	30 m / 2 h	30 m / 2 h	30 m / 2 h
Tracking Index	PTI 250	PTI 250	PTI 250
Cable Glands	PA66 UL94 V2	PA66 UL94 V2	PA66 UL94 V2
Terminal Block Housing	PA66 GF UL94 V0 GWT 960°C black - grey RAL 7035	PA66 GF UL94 V0 GWT 960°C black - grey RAL 7035	PA66 GF UL94 V0 GWT 960°C black - grey RAL 7035
Grommets	TPE Green	TPE Green	TPE Green
Co-moulded Seals	TPE Green	TPE Green	TPE Green
Contact Screw Terminals	Brass nickel plated	Brass nickel plated	Brass nickel plated
Standard / Piercing Screws	M3 steel zinc plated	M3 steel brass plated	M3 steel zinc plated
Standards	EN60529:1991+A1:2000 EN60998-1:2004 EN60998-2-1:2004	EN60529:1991+A1:2000 EN60998-1:2004 EN60998-2-1:2004	EN60529:1991+A1:2000 EN60998-1:2004 EN60998-2-1:2004

Characteristics differ between variants of a connector
