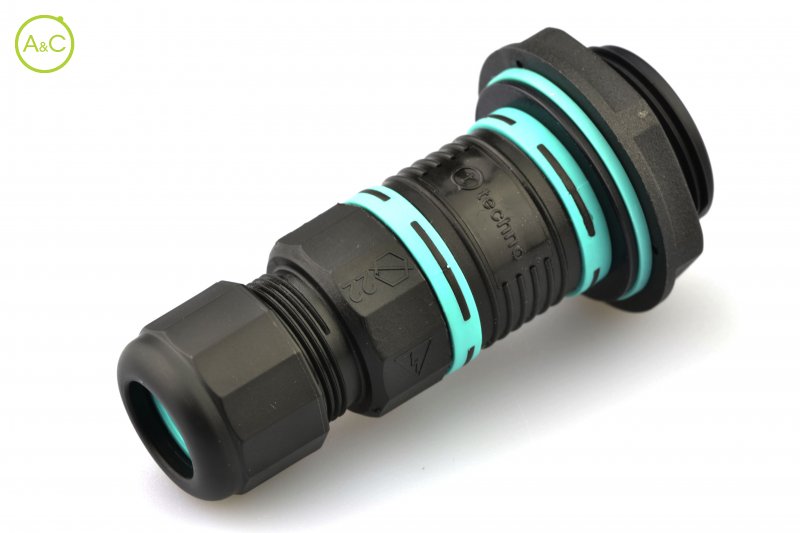

High protection in-line and junction, Anti condensation
Do you have any questions about this product?
More info on this brand:
Techno
Techno
Number Of Poles
- 4
| Article Number | THB.391.T4A | THP.391.T4A |
| Number Of Contacts | 4 | 4 |
| Protection Degree | IP68 3 bar | IP68 3 bar |
| Upper Temperature | +125 °C | +125 °C |
| Lower Temperature | -40 °C | -40 °C |
| Rated Voltage | 450 | 450 |
| Rated Current | 17.5 A | 17.5 A |
| Product Shape (type: I, L, T, Y) | I | I |
| Contact Terminal | End barrier contact | End barrier contact |
| Terminals | Screw | Screw |
| Cable Section | max. 4,0 mm² | max. 4,0 mm² |
| Nm | 7,0 - 12,0 | 7,0 - 12,0 |
| Cable Entries/exits | 2 ways | 2 ways |
| T Marking | T85 °C | T85 °C |
| Protection Degree Details | 30 m / 2 h | 30 m / 2 h |
| Tracking Index | PTI 250 | PTI 250 |
| Cable Glands | PA66 UL94 V2 | PA66 UL94 V2 |
| Terminal Block Housing | PA66 GF UL94 V0 GWT 960°C black - grey RAL 7035 | PA66 GF UL94 V0 GWT 960°C black - grey RAL 7035 |
| Grommets | TPE Green | TPE Green |
| Co-moulded Seals | TPE Green | TPE Green |
| Contact Screw Terminals | Brass nickel plated | Brass nickel plated |
| Standard / Piercing Screws | M3 steel zinc plated | M3 steel zinc plated |
| Standards | EN60529:1991+A1:2000 EN60998-1:2004 EN60998-2-1:2004 | EN60529:1991+A1:2000 EN60998-1:2004 EN60998-2-1:2004 |
Characteristics differ between variants of a connector
