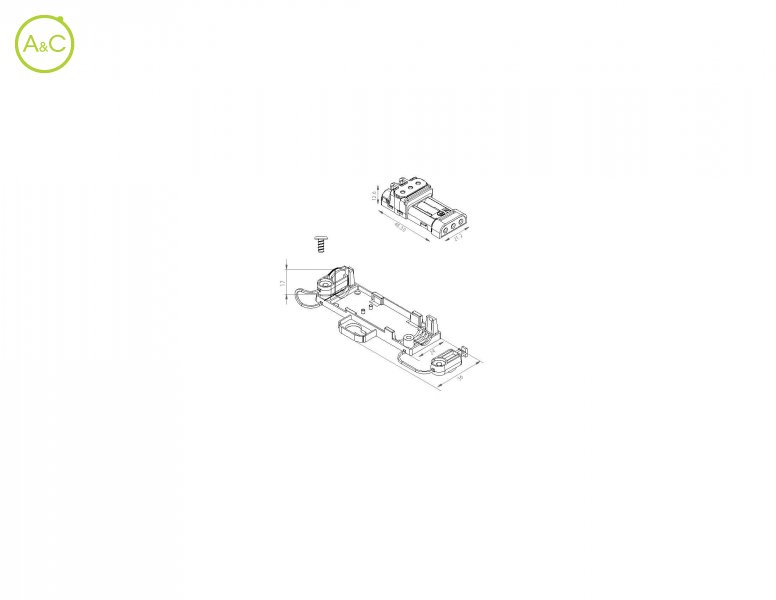

IP54 piercing clip terminal block

Do you have any questions about this product?

Download product sheet

More info on this brand:

Article Number	THP.112.A2A
Number Of Contacts	2
Protection Degree	IP54
Upper Temperature	+125 °C
Lower Temperature	-40 °C
Rated Voltage	450
Pollution Degree	2
Rated Current	17.5 A
Contact Terminal	Pin - piercing clip terminals / Piercing crimp terminals
Terminals	Piercing / crimp
Cable Section	0,5 -1,5 mm²
T Marking	T125 °C
Impulse Withstand Category	III
Impulse Withstand Voltage	6 kV
Tracking Index	PTI 250
Terminal Block Housing	PA66 GF UL94 V0 GWT 960°C black
Grommets	TPE
Contact Screw Terminals	Brass nickel plated
Standard / Piercing Screws	M3 steel zinc brass plated
Standards	EN61984:2001

Article Number	THP.112.A3A
Number Of Contacts	3
Protection Degree	IP54
Upper Temperature	+125 °C
Lower Temperature	-40 °C
Rated Voltage	450
Pollution Degree	2
Rated Current	17.5 A
Contact Terminal	Pin - piercing clip terminals / Piercing crimp terminals
Terminals	Piercing / crimp
Cable Section	0,5 -1,5 mm²
T Marking	T125 °C
Impulse Withstand Category	III
Impulse Withstand Voltage	6 kV
Tracking Index	PTI 250
Terminal Block Housing	PA66 GF UL94 V0 GWT 960°C black
Grommets	TPE
Contact Screw Terminals	Brass nickel plated
Standard / Piercing Screws	M3 steel zinc brass plated
Standards	EN61984:2001
