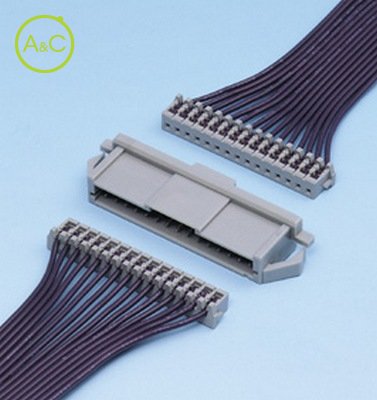

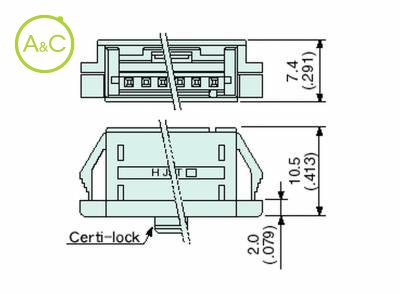

Unit for Wire-to-Wire connection
- TR CONNECTOR
Do you have any questions about this product?
More info on this brand:
JST
![JST](https://www.ac-solutions.be/themes/default/images/arrow.png)
Number Of Poles
- 2
- 3
- 4
- 5
- 6
- 7
- 8
- 9
- 10
- 11
- 12
- 13
- 14
- 15
- 16
- 18
- 20
- 22
- 24
- 26
- 28
- 30
- 32
Article Number | BU02P-TR-P-H | BU02P-TR-PC-H |
Number Of Contacts | 2 | 2 |
Upper Temperature | +85 °C | +85 °C |
Lower Temperature | -25 °C | -25 °C |
General Description | 2mm Pitch For Wire-to-Wire Connection | 2mm Pitch For Wire-to-Wire Connection |
Connection Type | Wire to Wire Connectors | Wire to Wire Connectors |
Pitch / Style | 2.00 mm | 2.00 mm |
Rated Current (ac/dc) | 1 A | 1 A |
Rated Voltage (ac/dc) | 100 V | 100 V |
Pcb Mount Style | Surface Mount Technology (SMT) Through-hole Technology (THT) | Surface Mount Technology (SMT) Through-hole Technology (THT) |
Remark* | normal type | reverse type |
Article Number | BU03P-TR-P-H | BU03P-TR-PC-H |
Number Of Contacts | 3 | 3 |
Upper Temperature | +85 °C | +85 °C |
Lower Temperature | -25 °C | -25 °C |
General Description | 2mm Pitch For Wire-to-Wire Connection | 2mm Pitch For Wire-to-Wire Connection |
Connection Type | Wire to Wire Connectors | Wire to Wire Connectors |
Pitch / Style | 2.00 mm | 2.00 mm |
Rated Current (ac/dc) | 1 A | 1 A |
Rated Voltage (ac/dc) | 100 V | 100 V |
Pcb Mount Style | Surface Mount Technology (SMT) Through-hole Technology (THT) | Surface Mount Technology (SMT) Through-hole Technology (THT) |
Remark* | normal type | reverse type |
Article Number | BU04P-TR-P-H | BU04P-TR-PC-H |
Number Of Contacts | 4 | 4 |
Upper Temperature | +85 °C | +85 °C |
Lower Temperature | -25 °C | -25 °C |
General Description | 2mm Pitch For Wire-to-Wire Connection | 2mm Pitch For Wire-to-Wire Connection |
Connection Type | Wire to Wire Connectors | Wire to Wire Connectors |
Pitch / Style | 2.00 mm | 2.00 mm |
Rated Current (ac/dc) | 1 A | 1 A |
Rated Voltage (ac/dc) | 100 V | 100 V |
Pcb Mount Style | Surface Mount Technology (SMT) Through-hole Technology (THT) | Surface Mount Technology (SMT) Through-hole Technology (THT) |
Remark* | normal type | reverse type |
Article Number | BU05P-TR-P-H | BU05P-TR-PC-H |
Number Of Contacts | 5 | 5 |
Upper Temperature | +85 °C | +85 °C |
Lower Temperature | -25 °C | -25 °C |
General Description | 2mm Pitch For Wire-to-Wire Connection | 2mm Pitch For Wire-to-Wire Connection |
Connection Type | Wire to Wire Connectors | Wire to Wire Connectors |
Pitch / Style | 2.00 mm | 2.00 mm |
Rated Current (ac/dc) | 1 A | 1 A |
Rated Voltage (ac/dc) | 100 V | 100 V |
Pcb Mount Style | Surface Mount Technology (SMT) Through-hole Technology (THT) | Surface Mount Technology (SMT) Through-hole Technology (THT) |
Remark* | normal type | reverse type |
Article Number | BU06P-TR-P-H | BU06P-TR-PC-H |
Number Of Contacts | 6 | 6 |
Upper Temperature | +85 °C | +85 °C |
Lower Temperature | -25 °C | -25 °C |
General Description | 2mm Pitch For Wire-to-Wire Connection | 2mm Pitch For Wire-to-Wire Connection |
Connection Type | Wire to Wire Connectors | Wire to Wire Connectors |
Pitch / Style | 2.00 mm | 2.00 mm |
Rated Current (ac/dc) | 1 A | 1 A |
Rated Voltage (ac/dc) | 100 V | 100 V |
Pcb Mount Style | Surface Mount Technology (SMT) Through-hole Technology (THT) | Surface Mount Technology (SMT) Through-hole Technology (THT) |
Remark* | normal type | reverse type |
Article Number | BU07P-TR-P-H | BU07P-TR-PC-H |
Number Of Contacts | 7 | 7 |
Upper Temperature | +85 °C | +85 °C |
Lower Temperature | -25 °C | -25 °C |
General Description | 2mm Pitch For Wire-to-Wire Connection | 2mm Pitch For Wire-to-Wire Connection |
Connection Type | Wire to Wire Connectors | Wire to Wire Connectors |
Pitch / Style | 2.00 mm | 2.00 mm |
Rated Current (ac/dc) | 1 A | 1 A |
Rated Voltage (ac/dc) | 100 V | 100 V |
Pcb Mount Style | Surface Mount Technology (SMT) Through-hole Technology (THT) | Surface Mount Technology (SMT) Through-hole Technology (THT) |
Remark* | normal type | reverse type |
Article Number | BU08P-TR-P-H | BU08P-TR-PC-H |
Number Of Contacts | 8 | 8 |
Upper Temperature | +85 °C | +85 °C |
Lower Temperature | -25 °C | -25 °C |
General Description | 2mm Pitch For Wire-to-Wire Connection | 2mm Pitch For Wire-to-Wire Connection |
Connection Type | Wire to Wire Connectors | Wire to Wire Connectors |
Pitch / Style | 2.00 mm | 2.00 mm |
Rated Current (ac/dc) | 1 A | 1 A |
Rated Voltage (ac/dc) | 100 V | 100 V |
Pcb Mount Style | Surface Mount Technology (SMT) Through-hole Technology (THT) | Surface Mount Technology (SMT) Through-hole Technology (THT) |
Remark* | normal type | reverse type |
Article Number | BU09P-TR-P-H | BU09P-TR-PC-H |
Number Of Contacts | 9 | 9 |
Upper Temperature | +85 °C | +85 °C |
Lower Temperature | -25 °C | -25 °C |
General Description | 2mm Pitch For Wire-to-Wire Connection | 2mm Pitch For Wire-to-Wire Connection |
Connection Type | Wire to Wire Connectors | Wire to Wire Connectors |
Pitch / Style | 2.00 mm | 2.00 mm |
Rated Current (ac/dc) | 1 A | 1 A |
Rated Voltage (ac/dc) | 100 V | 100 V |
Pcb Mount Style | Surface Mount Technology (SMT) Through-hole Technology (THT) | Surface Mount Technology (SMT) Through-hole Technology (THT) |
Remark* | normal type | reverse type |
Article Number | BU10P-TR-P-H | BU10P-TR-PC-H |
Number Of Contacts | 10 | 10 |
Upper Temperature | +85 °C | +85 °C |
Lower Temperature | -25 °C | -25 °C |
General Description | 2mm Pitch For Wire-to-Wire Connection | 2mm Pitch For Wire-to-Wire Connection |
Connection Type | Wire to Wire Connectors | Wire to Wire Connectors |
Pitch / Style | 2.00 mm | 2.00 mm |
Rated Current (ac/dc) | 1 A | 1 A |
Rated Voltage (ac/dc) | 100 V | 100 V |
Pcb Mount Style | Surface Mount Technology (SMT) Through-hole Technology (THT) | Surface Mount Technology (SMT) Through-hole Technology (THT) |
Remark* | normal type | reverse type |
Article Number | BU11P-TR-P-H | BU11P-TR-PC-H |
Number Of Contacts | 11 | 11 |
Upper Temperature | +85 °C | +85 °C |
Lower Temperature | -25 °C | -25 °C |
General Description | 2mm Pitch For Wire-to-Wire Connection | 2mm Pitch For Wire-to-Wire Connection |
Connection Type | Wire to Wire Connectors | Wire to Wire Connectors |
Pitch / Style | 2.00 mm | 2.00 mm |
Rated Current (ac/dc) | 1 A | 1 A |
Rated Voltage (ac/dc) | 100 V | 100 V |
Pcb Mount Style | Surface Mount Technology (SMT) Through-hole Technology (THT) | Surface Mount Technology (SMT) Through-hole Technology (THT) |
Remark* | normal type | reverse type |
Article Number | BU12P-TR-P-H | BU12P-TR-PC-H |
Number Of Contacts | 12 | 12 |
Upper Temperature | +85 °C | +85 °C |
Lower Temperature | -25 °C | -25 °C |
General Description | 2mm Pitch For Wire-to-Wire Connection | 2mm Pitch For Wire-to-Wire Connection |
Connection Type | Wire to Wire Connectors | Wire to Wire Connectors |
Pitch / Style | 2.00 mm | 2.00 mm |
Rated Current (ac/dc) | 1 A | 1 A |
Rated Voltage (ac/dc) | 100 V | 100 V |
Pcb Mount Style | Surface Mount Technology (SMT) Through-hole Technology (THT) | Surface Mount Technology (SMT) Through-hole Technology (THT) |
Remark* | normal type | reverse type |
Article Number | BU13P-TR-P-H | BU13P-TR-PC-H |
Number Of Contacts | 13 | 13 |
Upper Temperature | +85 °C | +85 °C |
Lower Temperature | -25 °C | -25 °C |
General Description | 2mm Pitch For Wire-to-Wire Connection | 2mm Pitch For Wire-to-Wire Connection |
Connection Type | Wire to Wire Connectors | Wire to Wire Connectors |
Pitch / Style | 2.00 mm | 2.00 mm |
Rated Current (ac/dc) | 1 A | 1 A |
Rated Voltage (ac/dc) | 100 V | 100 V |
Pcb Mount Style | Surface Mount Technology (SMT) Through-hole Technology (THT) | Surface Mount Technology (SMT) Through-hole Technology (THT) |
Remark* | normal type | reverse type |
Article Number | BU14P-TR-P-H | BU14P-TR-PC-H |
Number Of Contacts | 14 | 14 |
Upper Temperature | +85 °C | +85 °C |
Lower Temperature | -25 °C | -25 °C |
General Description | 2mm Pitch For Wire-to-Wire Connection | 2mm Pitch For Wire-to-Wire Connection |
Connection Type | Wire to Wire Connectors | Wire to Wire Connectors |
Pitch / Style | 2.00 mm | 2.00 mm |
Rated Current (ac/dc) | 1 A | 1 A |
Rated Voltage (ac/dc) | 100 V | 100 V |
Pcb Mount Style | Surface Mount Technology (SMT) Through-hole Technology (THT) | Surface Mount Technology (SMT) Through-hole Technology (THT) |
Remark* | normal type | reverse type |
Article Number | BU15P-TR-P-H | BU15P-TR-PC-H |
Number Of Contacts | 15 | 15 |
Upper Temperature | +85 °C | +85 °C |
Lower Temperature | -25 °C | -25 °C |
General Description | 2mm Pitch For Wire-to-Wire Connection | 2mm Pitch For Wire-to-Wire Connection |
Connection Type | Wire to Wire Connectors | Wire to Wire Connectors |
Pitch / Style | 2.00 mm | 2.00 mm |
Rated Current (ac/dc) | 1 A | 1 A |
Rated Voltage (ac/dc) | 100 V | 100 V |
Pcb Mount Style | Surface Mount Technology (SMT) Through-hole Technology (THT) | Surface Mount Technology (SMT) Through-hole Technology (THT) |
Remark* | normal type | reverse type |
Article Number | BU16P-TR-P-H | BU16P-TR-PC-H | BU16P-TRW-P-H | BU16P-TRW-PC-H |
Number Of Contacts | 16 | 16 | 16 | 16 |
Upper Temperature | +85 °C | +85 °C | +85 °C | +85 °C |
Lower Temperature | -25 °C | -25 °C | -25 °C | -25 °C |
General Description | 2mm Pitch For Wire-to-Wire Connection | 2mm Pitch For Wire-to-Wire Connection | 2mm Pitch For Wire-to-Wire Connection | 2mm Pitch For Wire-to-Wire Connection |
Connection Type | Wire to Wire Connectors | Wire to Wire Connectors | Wire to Wire Connectors | Wire to Wire Connectors |
Pitch / Style | 2.00 mm | 2.00 mm | 2.00 mm | 2.00 mm |
Rated Current (ac/dc) | 1 A | 1 A | 1 A | 1 A |
Rated Voltage (ac/dc) | 100 V | 100 V | 100 V | 100 V |
Pcb Mount Style | Surface Mount Technology (SMT) Through-hole Technology (THT) | Surface Mount Technology (SMT) Through-hole Technology (THT) | Surface Mount Technology (SMT) Through-hole Technology (THT) | Surface Mount Technology (SMT) Through-hole Technology (THT) |
Remark* | normal type | reverse type | normal type | reverse type |
Article Number | BU18P-TRW-P-H | BU18P-TRW-PC-H |
Number Of Contacts | 18 | 18 |
Upper Temperature | +85 °C | +85 °C |
Lower Temperature | -25 °C | -25 °C |
General Description | 2mm Pitch For Wire-to-Wire Connection | 2mm Pitch For Wire-to-Wire Connection |
Connection Type | Wire to Wire Connectors | Wire to Wire Connectors |
Pitch / Style | 2.00 mm | 2.00 mm |
Rated Current (ac/dc) | 1 A | 1 A |
Rated Voltage (ac/dc) | 100 V | 100 V |
Pcb Mount Style | Surface Mount Technology (SMT) Through-hole Technology (THT) | Surface Mount Technology (SMT) Through-hole Technology (THT) |
Remark* | normal type | reverse type |
Article Number | BU20P-TRW-P-H | BU20P-TRW-PC-H |
Number Of Contacts | 20 | 20 |
Upper Temperature | +85 °C | +85 °C |
Lower Temperature | -25 °C | -25 °C |
General Description | 2mm Pitch For Wire-to-Wire Connection | 2mm Pitch For Wire-to-Wire Connection |
Connection Type | Wire to Wire Connectors | Wire to Wire Connectors |
Pitch / Style | 2.00 mm | 2.00 mm |
Rated Current (ac/dc) | 1 A | 1 A |
Rated Voltage (ac/dc) | 100 V | 100 V |
Pcb Mount Style | Surface Mount Technology (SMT) Through-hole Technology (THT) | Surface Mount Technology (SMT) Through-hole Technology (THT) |
Remark* | normal type | reverse type |
Article Number | BU22P-TRW-P-H | BU22P-TRW-PC-H |
Number Of Contacts | 22 | 22 |
Upper Temperature | +85 °C | +85 °C |
Lower Temperature | -25 °C | -25 °C |
General Description | 2mm Pitch For Wire-to-Wire Connection | 2mm Pitch For Wire-to-Wire Connection |
Connection Type | Wire to Wire Connectors | Wire to Wire Connectors |
Pitch / Style | 2.00 mm | 2.00 mm |
Rated Current (ac/dc) | 1 A | 1 A |
Rated Voltage (ac/dc) | 100 V | 100 V |
Pcb Mount Style | Surface Mount Technology (SMT) Through-hole Technology (THT) | Surface Mount Technology (SMT) Through-hole Technology (THT) |
Remark* | normal type | reverse type |
Article Number | BU24P-TRW-P-H | BU24P-TRW-PC-H |
Number Of Contacts | 24 | 24 |
Upper Temperature | +85 °C | +85 °C |
Lower Temperature | -25 °C | -25 °C |
General Description | 2mm Pitch For Wire-to-Wire Connection | 2mm Pitch For Wire-to-Wire Connection |
Connection Type | Wire to Wire Connectors | Wire to Wire Connectors |
Pitch / Style | 2.00 mm | 2.00 mm |
Rated Current (ac/dc) | 1 A | 1 A |
Rated Voltage (ac/dc) | 100 V | 100 V |
Pcb Mount Style | Surface Mount Technology (SMT) Through-hole Technology (THT) | Surface Mount Technology (SMT) Through-hole Technology (THT) |
Remark* | normal type | reverse type |
Article Number | BU26P-TRW-P-H | BU26P-TRW-PC-H |
Number Of Contacts | 26 | 26 |
Upper Temperature | +85 °C | +85 °C |
Lower Temperature | -25 °C | -25 °C |
General Description | 2mm Pitch For Wire-to-Wire Connection | 2mm Pitch For Wire-to-Wire Connection |
Connection Type | Wire to Wire Connectors | Wire to Wire Connectors |
Pitch / Style | 2.00 mm | 2.00 mm |
Rated Current (ac/dc) | 1 A | 1 A |
Rated Voltage (ac/dc) | 100 V | 100 V |
Pcb Mount Style | Surface Mount Technology (SMT) Through-hole Technology (THT) | Surface Mount Technology (SMT) Through-hole Technology (THT) |
Remark* | normal type | reverse type |
Article Number | BU28P-TRW-P-H | BU28P-TRW-PC-H |
Number Of Contacts | 28 | 28 |
Upper Temperature | +85 °C | +85 °C |
Lower Temperature | -25 °C | -25 °C |
General Description | 2mm Pitch For Wire-to-Wire Connection | 2mm Pitch For Wire-to-Wire Connection |
Connection Type | Wire to Wire Connectors | Wire to Wire Connectors |
Pitch / Style | 2.00 mm | 2.00 mm |
Rated Current (ac/dc) | 1 A | 1 A |
Rated Voltage (ac/dc) | 100 V | 100 V |
Pcb Mount Style | Surface Mount Technology (SMT) Through-hole Technology (THT) | Surface Mount Technology (SMT) Through-hole Technology (THT) |
Remark* | normal type | reverse type |
Article Number | BU30P-TRW-P-H | BU30P-TRW-PC-H |
Number Of Contacts | 30 | 30 |
Upper Temperature | +85 °C | +85 °C |
Lower Temperature | -25 °C | -25 °C |
General Description | 2mm Pitch For Wire-to-Wire Connection | 2mm Pitch For Wire-to-Wire Connection |
Connection Type | Wire to Wire Connectors | Wire to Wire Connectors |
Pitch / Style | 2.00 mm | 2.00 mm |
Rated Current (ac/dc) | 1 A | 1 A |
Rated Voltage (ac/dc) | 100 V | 100 V |
Pcb Mount Style | Surface Mount Technology (SMT) Through-hole Technology (THT) | Surface Mount Technology (SMT) Through-hole Technology (THT) |
Remark* | normal type | reverse type |
Article Number | BU32P-TRW-P-H | BU32P-TRW-PC-H |
Number Of Contacts | 32 | 32 |
Upper Temperature | +85 °C | +85 °C |
Lower Temperature | -25 °C | -25 °C |
General Description | 2mm Pitch For Wire-to-Wire Connection | 2mm Pitch For Wire-to-Wire Connection |
Connection Type | Wire to Wire Connectors | Wire to Wire Connectors |
Pitch / Style | 2.00 mm | 2.00 mm |
Rated Current (ac/dc) | 1 A | 1 A |
Rated Voltage (ac/dc) | 100 V | 100 V |
Pcb Mount Style | Surface Mount Technology (SMT) Through-hole Technology (THT) | Surface Mount Technology (SMT) Through-hole Technology (THT) |
Remark* | normal type | reverse type |
Characteristics differ between variants of a connector
Based upon JST's field proven KR series connectors, the KR series family of
connectors have been expanded to meet the requirements of high density packaging.
The KRW connector allows double-row wire-to-board connection using either the KR or PHN connectors. Whilst the TR connector allows wire-to-wire connection, also using either the KR or PHN connectors.
Multi-IDC-harnesses are possible
Various types of connectors
In addition to the KRW, KR, PHN and TR connectors, there are other 2.0mm (.079") pitch connectors available such as the KRD, CR, DA, DD and DS ranges.
Cost reduction
By introducing the KR family series, a reduction in harness production time can be achieved through rationalization/standardization. This in turn, will therefore reduce harness costs, thus benefiting both the harness-maker and the setmaker alike.
Two types of circuit layouts
The connector is available in either the normal or reverse configurations. (Circuit number layouts are different from each other.)
Standards
UL Recognized E60389
CSA Certified LR20812
TUV R75087: PH, PHN connectors
TUV R75088: KR connector
TUV R9851222: KRW connector
TUV R9851223: TR connector
RoHS Compliant
