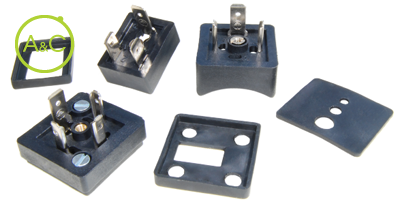

Style C micro receptacle connector
Do you have any questions about this product?
More info on this brand:
Shield
Shield
Number Of Poles
- 2+G
- 3+G
| Article Number | VT11 02A0S |
| Number Of Contacts | 2+G |
| Protection Degree | IP65 |
| Upper Temperature | +125 °C |
| Lower Temperature | -40 °C |
| Housing Material | PA66 30%GF |
| Housing Oil Resistance | Occasional contact |
| Contact Material | Nickel plated CuZn |
| Max. Wire Section | 0,75 mm² |
| Voltage Vdc | 1 to 250 |
| Voltage Vac | 1 to 250 |
| Max. Currrent | 6 A @40°C |
| Included Accessories | 1 screw M2,5x8 1 gasket |
Characteristics differ between variants of a connector
