Connectors
Back to product overview
Download product sheet

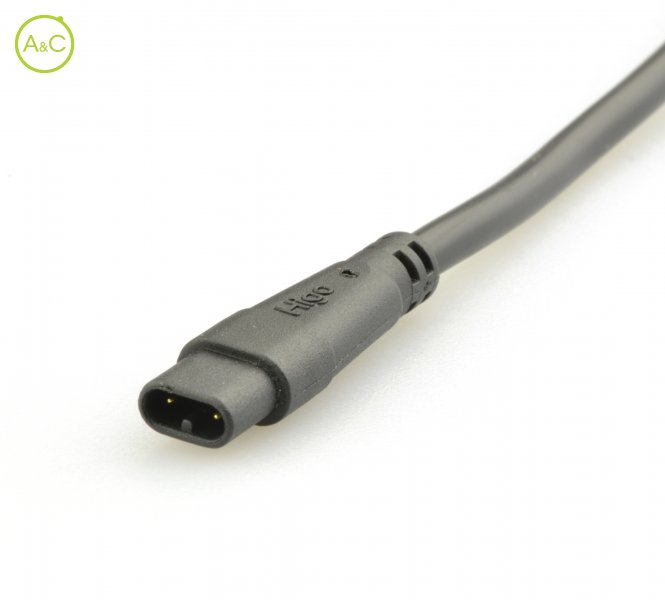

Mini E male cable connector
Do you have any questions about this product?
More info on this brand:
Higo
![Higo](https://www.ac-solutions.be/themes/default/images/arrow.png)
Number Of Poles
- 2
Article Number | Z209EG P 00 D7 1000 |
Color | Black |
Connector Diameter | 8 mm |
Wire Section | 0.2 mm² |
Cable Length | 1000 mm |
Protection Degree | IP66 |
Mating Cycles | 200 times |
Upper Temperature | 80 °C |
Lower Temperature | -25 °C |
Rated Voltage | 48 V AC / 60 V DC |
Max. Contact Resistance | ≤10 mΩ |
Material Of Contact | Brass |
Insulation Wire | PVC |
Remark | Other cable length/type on request |
Rated Current | 2 A |
Max. Insulation Resistance | ≥20 MΩ |
Contact Plating | Gold over Nickel |
Material Jacket | PVC |
Characteristics differ between variants of a connector
