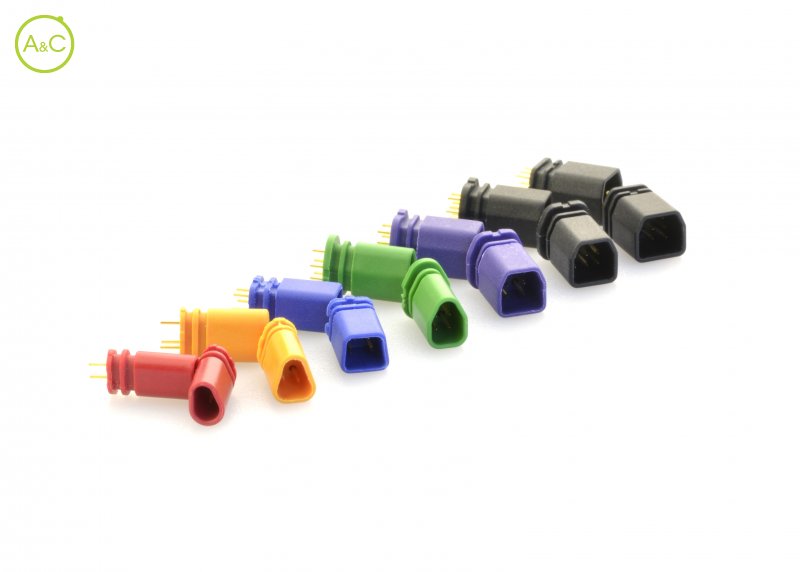

Mini F male panel mount connector
Do you have any questions about this product?
More info on this brand:
Higo
![Higo](https://www.ac-solutions.be/themes/default/images/arrow.png)
Number Of Poles
- 2
- 3
- 4
- 5
- 6
- 8
- 9
Article Number | Z209FG C 04 00 0000 |
Color | Red |

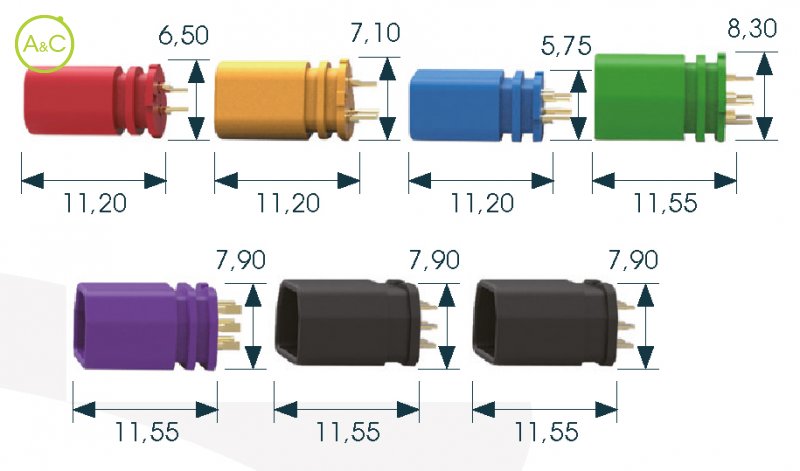

Connector Diameter | 6,5 x 6,3 mm |
Protection Degree | IP66/IP67 |
Mating Cycles | 200 times |
Upper Temperature | 80 °C |
Lower Temperature | -25 °C |
Rated Voltage | 48 V AC / 60 V DC |
Max. Contact Resistance | ≤10 mΩ |
Material Of Contact | Copper Alloy |
Remark | Other cable length/type on request |
Rated Current | 2 A |
Max. Insulation Resistance | ≥20 MΩ |
Contact Plating | Gold over Nickel |
Contact Type | Straight PCB contacts |
Characteristics differ between variants of a connector
