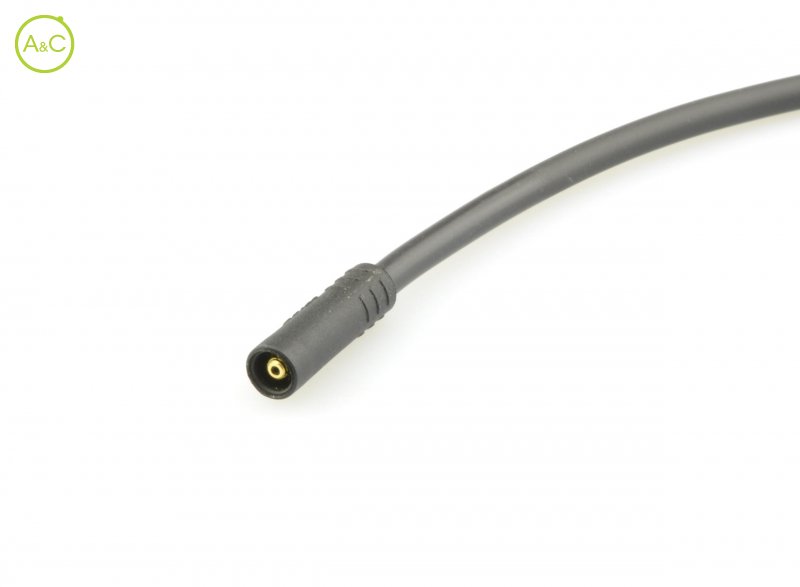

Micro A Female plug connector
Do you have any questions about this product?
More info on this brand:
Higo
Number Of Poles
- 3
Article Number | Z305AM P 00 FV 1000 |
Color | Black |
Connector Diameter | 5.5 mm |
Wire Section | 3 x 0,14 mm² |
Cable Length | 1000 mm |
Protection Degree | IP66 |
Mating Cycles | 200 times |
Upper Temperature | 80 °C |
Lower Temperature | -25 °C |
Rated Voltage | 48 V AC / 60 V DC |
Max. Contact Resistance | ≤10 mΩ |
Material Of Contact | Phosphor Bronze |
Cable Diameter | 3.7 mm |
Insulation Wire | PVC |
Remark | Other cable length/type on request |
Rated Current | 2 A |
Max. Insulation Resistance | ≥20 MΩ |
Contact Plating | Gold over Nickel |

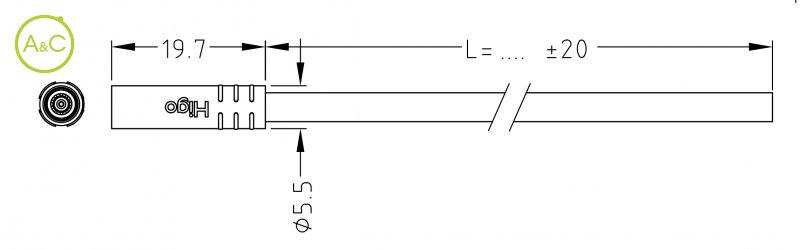

Fitting Length | 31.7 mm |
Material Jacket | PVC |
Characteristics differ between variants of a connector
