Connectors
Back to product overview
Download product sheet
Download step file

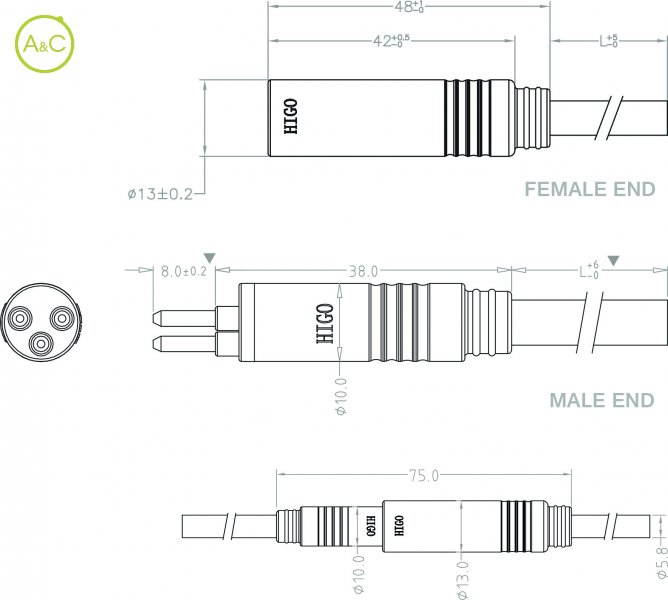

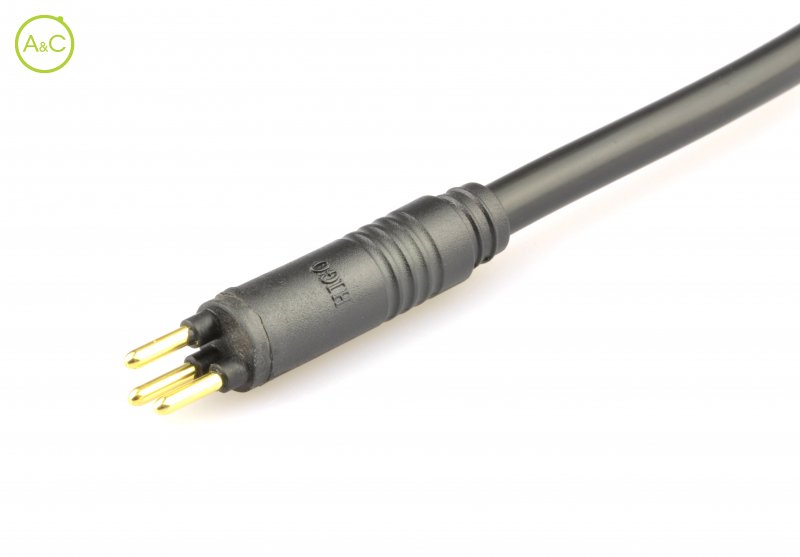

Male cable connector
Do you have any questions about this product?
More info on this brand:
Higo
![Higo](https://www.ac-solutions.be/themes/default/images/arrow.png)
Number Of Poles
- 3
Article Number | Z310BG P 00 A9 1000 | Z310BG P 00 AA 1000 | Z310BG P 00 AB 1000 |
Color | Black | Black | Black |
Connector Diameter | 10 / 13 mm | 10 / 13 mm | 10 / 13 mm |
Wire Section | 3 x 1,2 mm² | 3 x 1,5 mm² | 3 x 2,0 mm² |
Cable Length | 1000 mm | 1000 mm | 1000 mm |
Protection Degree | IP66 | IP66 | IP66 |
Mating Cycles | 200 times | 200 times | 200 times |
Upper Temperature | 80 °C | 80 °C | 80 °C |
Lower Temperature | -25 °C | -25 °C | -25 °C |
Rated Voltage | 48 V AC / 60 V DC | 48 V AC / 60 V DC | 48 V AC / 60 V DC |
Max. Contact Resistance | ≤10 mΩ | ≤10 mΩ | ≤10 mΩ |
Material Of Contact | Copper Alloy | Copper Alloy | Copper Alloy |
Cable Diameter | 5.8 mm | 5.8 mm | 5.8 mm |
Insulation Wire | Teflon | Teflon | Teflon |
Remark | Other cable length/type on request | Other cable length/type on request | Other cable length/type on request |
Rated Current | 15 A | 15 A | 15 A |
Max. Insulation Resistance | ≥20 MΩ | ≥20 MΩ | ≥20 MΩ |
Contact Plating | Gold over Nickel | Gold over Nickel | Gold over Nickel |
Fitting Length | 75 mm | 75 mm | 75 mm |
Material Jacket | PVC | PVC | PVC |
Characteristics differ between variants of a connector
