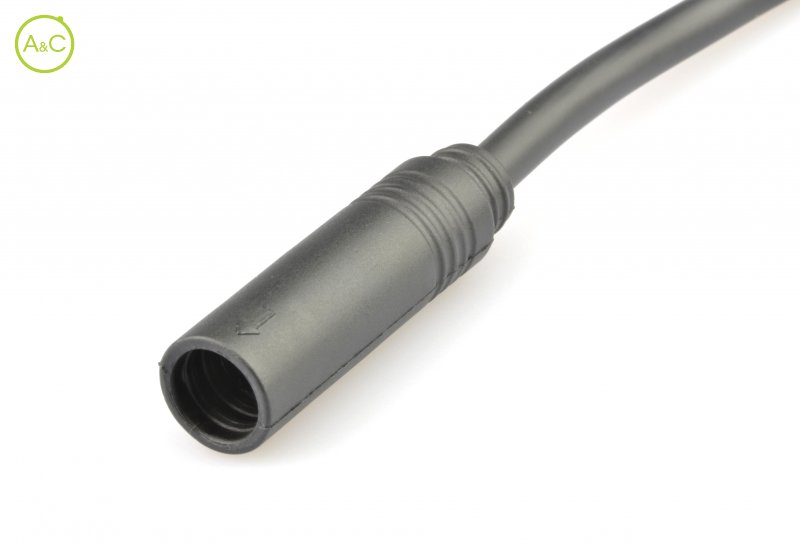

Female cable connector

Do you have any questions about this product?

Download product sheet Download step file

More info on this brand:

Article Number	Z610AM P 00 AC 1000	Z610AM P 00 AD 1000
Color	Black	Black
Connector Diameter	13 mm	13 mm
Wire Section	3 x 1,2 + 3 x 0,2 mm²	3 x 1,5 + 3 x 0,2 mm²
Cable Length	1000 mm	1000 mm
Protection Degree	IP66	IP66
Mating Cycles	200 times	200 times
Upper Temperature	80 °C	80 °C
Lower Temperature	-25 °C	-25 °C
Rated Voltage	48 V AC / 60 V DC	48 V AC / 60 V DC
Max. Contact Resistance	≤10 mΩ	≤10 mΩ
Material Of Contact	Copper Alloy	Copper Alloy
Cable Diameter	5.8 mm	5.8 mm
Insulation Wire	Teflon	Teflon
Remark	Other cable length/type on request	Other cable length/type on request
Rated Current	15 / 2 A	15 / 2 A
Max. Insulation Resistance	≥20 MΩ	≥20 MΩ
Contact Plating	Gold over Nickel	Gold over Nickel
Fitting Length	75 mm	75 mm
Material Jacket	PVC	PVC

Article Number	Z910AM P 00 AE 1000	Z910AM P 00 AF 1000
Color	Black	Black
Connector Diameter	13 mm	13 mm
Wire Section	3 x 1,2 + 6 x 0,2 mm²	3 x 1,5 + 6 x 0,14 mm²
Cable Length	1000 mm	1000 mm
Protection Degree	IP66	IP66
Mating Cycles	200 times	200 times
Upper Temperature	80 °C	80 °C
Lower Temperature	-25 °C	-25 °C
Rated Voltage	48 V AC / 60 V DC	48 V AC / 60 V DC
Max. Contact Resistance	≤10 mΩ	≤10 mΩ
Material Of Contact	Copper Alloy	Copper Alloy
Cable Diameter	5.8 mm	5.8 mm
Insulation Wire	Teflon	Teflon
Remark	Other cable length/type on request	Other cable length/type on request
Rated Current	15 / 2 A	15 / 2 A
Max. Insulation Resistance	≥20 MΩ	≥20 MΩ
Contact Plating	Gold over Nickel	Gold over Nickel
Fitting Length	75 mm	75 mm
Material Jacket	PVC	PVC

Characteristics differ between variants of a connector
