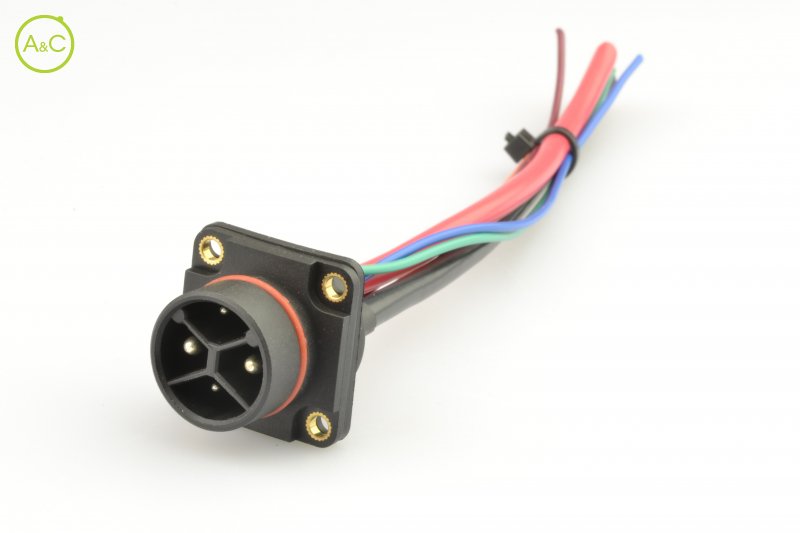

Battery male panel mount connector 48V code, no locking (push-on)
Do you have any questions about this product?
More info on this brand:
Higo
Higo
Number Of Poles
- 6
| Article Number | Z624BG C 03 D1 0150 |
| Color | Black |
| Connector Diameter | 28.5 mm |
| Wire Section | 2 x 2,0 + 4 x 0,34 mm² |
| Cable Length | Single wires 300 mm |
| Protection Degree | IP67 |
| Mating Cycles | 3000 times |
| Upper Temperature | 80 °C |
| Lower Temperature | -25 °C |
| Rated Voltage | 48 V AC / 60 V DC |
| Max. Contact Resistance | ≤10 mΩ |
| Material Of Contact | Phosphor bronze |
| Remark | Other cable length/type on request |
| Rated Current | 25 / 5 A |
| Max. Insulation Resistance | ≥20 MΩ |
| Contact Plating | Gold over Nickel |
Characteristics differ between variants of a connector
