Higo 45A motor connector designed to drive 500 Watt E-bikes
Back to project overview
Segment:
E-bikes
Situation:
More and more E-bike manufacturers are launching E-bikes with very powerful motors (500 Watt). As a result there is a growing need for connectors that can handle high currents (45A) as well.
Solution:
This has inspired Higo to start developing a 45A motor connector. This compact connector will still have 10 poles on a surface of only 19mm. The connected wires are 3 x 4mm2 + 7 x 0,14mm2 with a cable diameter of 8,5mm, which is exceptionally small for this combination of contacts. If needed, there is even room left to extend the number of poles with additional signal contacts.

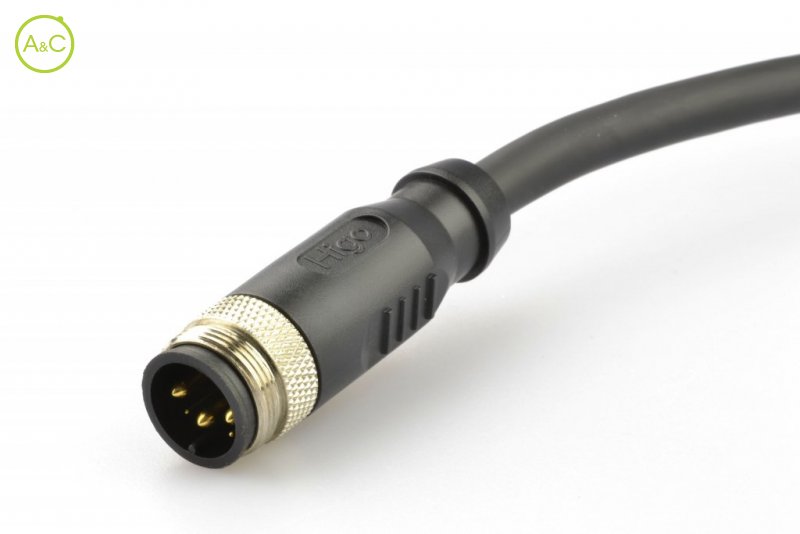

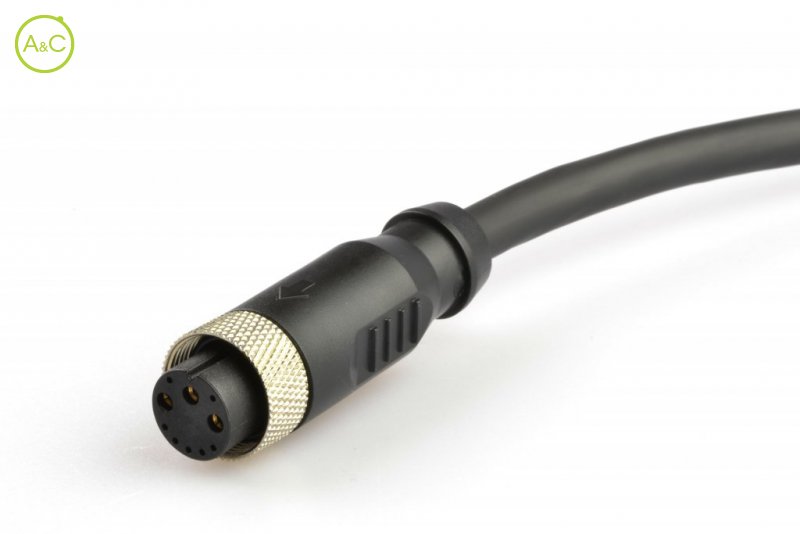

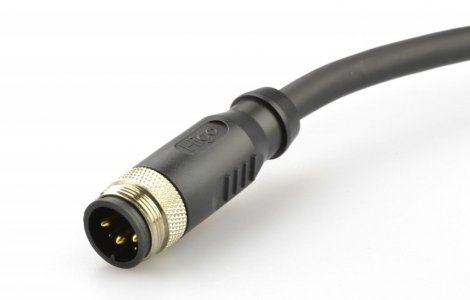

Connector:
