Female panel mount connector

Avez-vous des questions sur ce produit?

Plus d’infos sur cette marque:

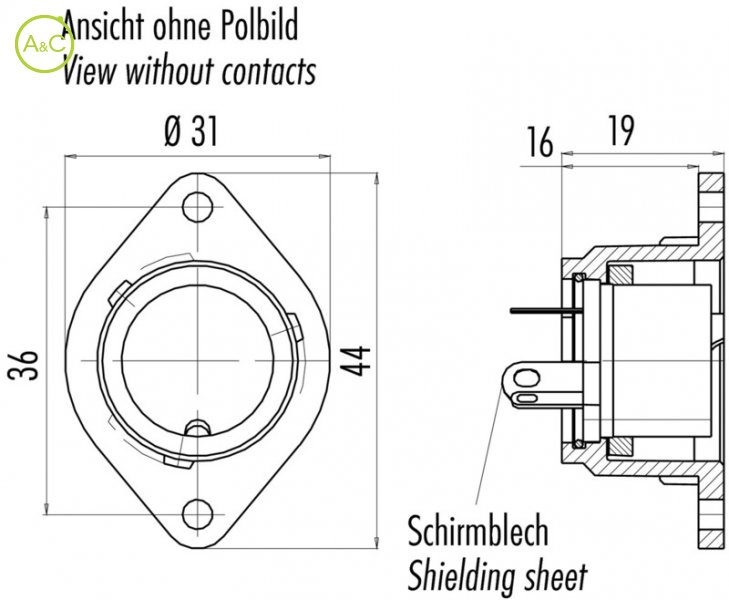

Article Number	09 0058 70 03
Connector Diameter	29 mm
Number Of Contacts	3 contacts
Connector Locking System	Bayonet
Termination	Solder
Wire Section	2.5 mm²
Protection Degree	IP40
Mating Cycles	>500 times
Upper Temperature	+85 °C
Lower Temperature	-40 °C
Rated Voltage	250
Rated Impuls Voltage	2500 V
Pollution Degree	1
Overvoltage Categorie	II
Material Group	III
Rated Current (40°)	10 A
Max. Contact Resistance	5 mΩ
Material Of Contact	CuSn (Bronze)
Plating	Ag (Silver)
Material Of Insert	PBT (UL 94 V-0)
Material Of Housing	PBT (UL 94 V-0)
Fiche produit	Télécharger la fiche produit

Article Number	09 0062 70 05
Connector Diameter	29 mm
Number Of Contacts	5 contacts
Connector Locking System	Bayonet
Termination	Solder
Wire Section	2.5 mm²
Protection Degree	IP40
Mating Cycles	>500 times
Upper Temperature	+85 °C
Lower Temperature	-40 °C
Rated Voltage	250
Rated Impuls Voltage	2500 V
Pollution Degree	1
Overvoltage Categorie	II
Material Group	III
Rated Current (40°)	10 A
Max. Contact Resistance	5 mΩ
Material Of Contact	CuSn (Bronze)
Plating	Ag (Silver)
Material Of Insert	PBT (UL 94 V-0)
Material Of Housing	PBT (UL 94 V-0)
Fiche produit	Télécharger la fiche produit

Article Number	09 0066 70 07
Connector Diameter	29 mm
Number Of Contacts	7 contacts
Connector Locking System	Bayonet
Termination	Solder
Wire Section	0.75 mm²
Protection Degree	IP40
Mating Cycles	>500 times
Upper Temperature	+85 °C
Lower Temperature	-40 °C
Rated Voltage	250
Rated Impuls Voltage	2500 V
Pollution Degree	1
Overvoltage Categorie	II
Material Group	III
Rated Current (40°)	5 A
Max. Contact Resistance	8 mΩ
Material Of Contact	CuSn (Bronze)
Plating	Ag (Silver)
Material Of Insert	PBT (UL 94 V-0)
Material Of Housing	PBT (UL 94 V-0)
Fiche produit	Télécharger la fiche produit

Les propriétés diffèrent selon les variantes et sous-variantes
