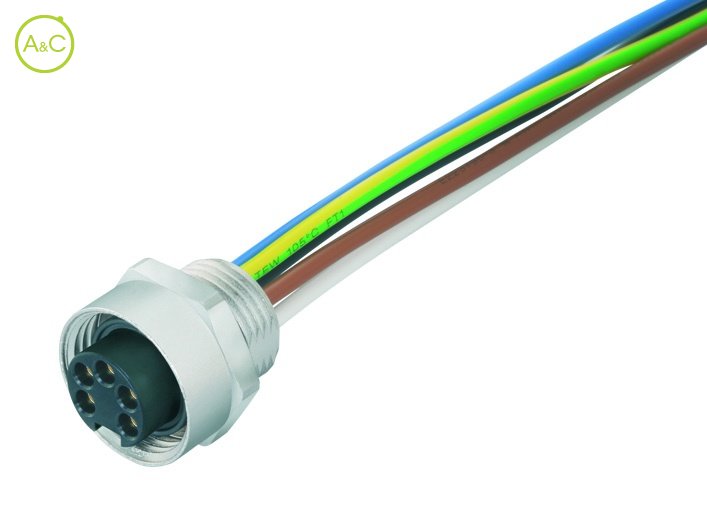

Female panel mount connector

  • With single wires
  • UL-approval

Number Of Poles

  • 2+PE
  • 4
  • 4+PE

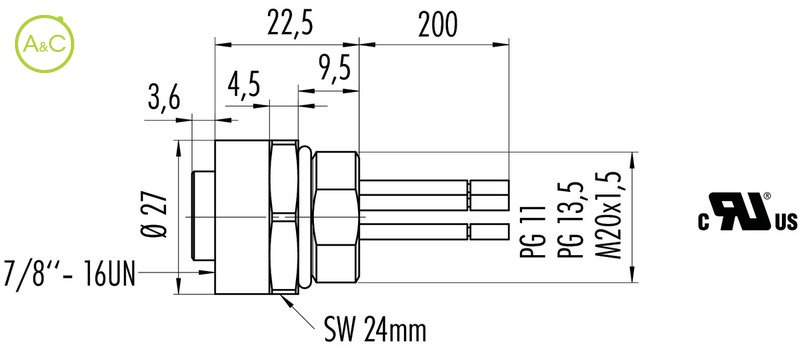

Article Number 09 2446 310 03 09 2446 300 03 09 2446 320 03
Connector Diameter 27 mm 27 mm 27 mm
Number Of Contacts 2+PE contacts 2+PE contacts 2+PE contacts
Connector Locking System Screw (7/8"-16 UN) Screw (7/8"-16 UN) Screw (7/8"-16 UN)
Termination Single wires Single wires Single wires
Wire Section 0.82 mm² 0.82 mm² 0.82 mm²
Protection Degree IP67 IP67 IP67
Mating Cycles >100 times >100 times >100 times
Upper Temperature +85 °C +85 °C +85 °C
Lower Temperature -25 °C -25 °C -25 °C
Rated Voltage 300 (UL 600) 300 (UL 600) 300 (UL 600)
Rated Impuls Voltage 2500 V 2500 V 2500 V
Pollution Degree 3 3 3
Overvoltage Categorie III III III
Material Group III III III
Rated Current (40°) 10 A 10 A 10 A
Max. Contact Resistance 5 mΩ 5 mΩ 5 mΩ
Material Of Contact CuZn (Brass) CuZn (Brass) CuZn (Brass)
Plating Au (Gold) Au (Gold) Au (Gold)
Material Of Insert PUR (UL 94 HB) PUR (UL 94 HB) PUR (UL 94 HB)
Material Of Housing Brass nickel plated / zinc diecasting nickel plated Brass nickel plated / zinc diecasting nickel plated Brass nickel plated / zinc diecasting nickel plated
Fiche produit Télécharger la fiche produit Télécharger la fiche produit Télécharger la fiche produit
Les propriétés diffèrent selon les variantes et sous-variantes
