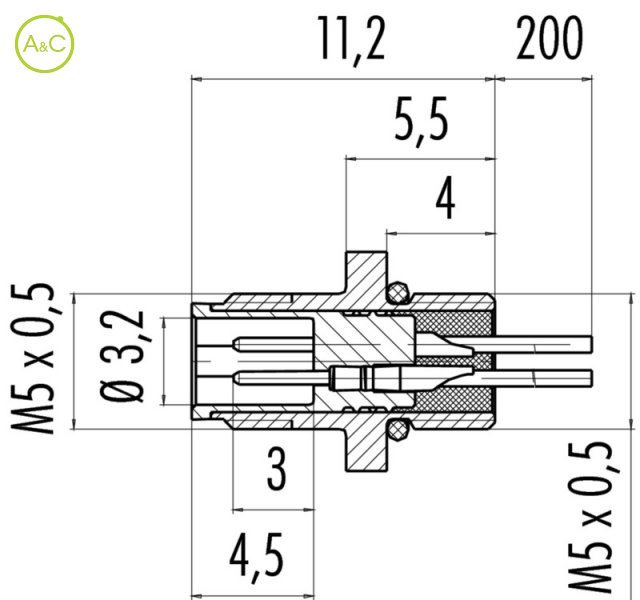

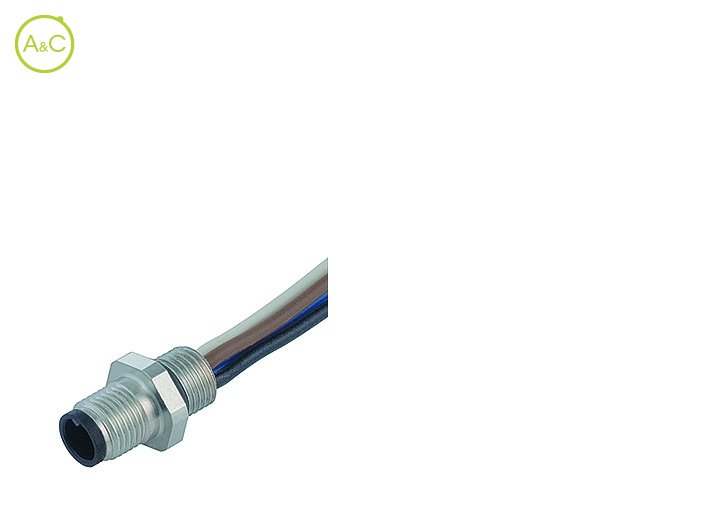

Male panel mount connector

  • With single wires

Number Of Poles

  • 3
  • 4
Article Number 09 3105 00 03 09 3105 01 03
Number Of Contacts 3 contacts 3 contacts
Connector Locking System Screw (M5) Screw (M5)
Termination Assembled with single wires Assembled with single wires
Wire Section 0.14 mm² 0.25 mm²
Protection Degree IP67 IP67
Mating Cycles >100 times >100 times
Upper Temperature +80 °C +80 °C
Lower Temperature -25 °C -25 °C
Rated Voltage 60 60
Rated Impuls Voltage 800 V 800 V
Pollution Degree 3 3
Overvoltage Categorie II II
Material Group I I
Rated Current (40°) 1 A 1 A
Max. Contact Resistance 3 mΩ 3 mΩ
Material Of Contact CuZn (Brass) CuZn (Brass)
Plating Au (Gold) Au (Gold)
Material Of Insert PA PA
Material Of Housing CuZn (Brass nickel plated) CuZn (Brass nickel plated)
Cable Diameter 3,1 mm 3,7 mm
Cable Jacket Material PUR PUR
Insulation Wire PVC PVC
Fiche produit Télécharger la fiche produit Télécharger la fiche produit
Les propriétés diffèrent selon les variantes et sous-variantes
