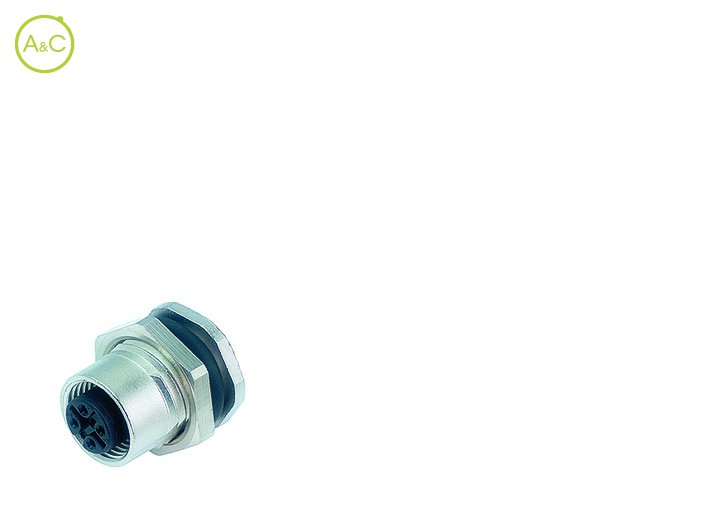

Female panel mount connector

  • Solder, front fastened

Number Of Poles

  • 4
  • 5
Article Number 86 0532 1002 00004
Old Article Number 09 3432 216 04

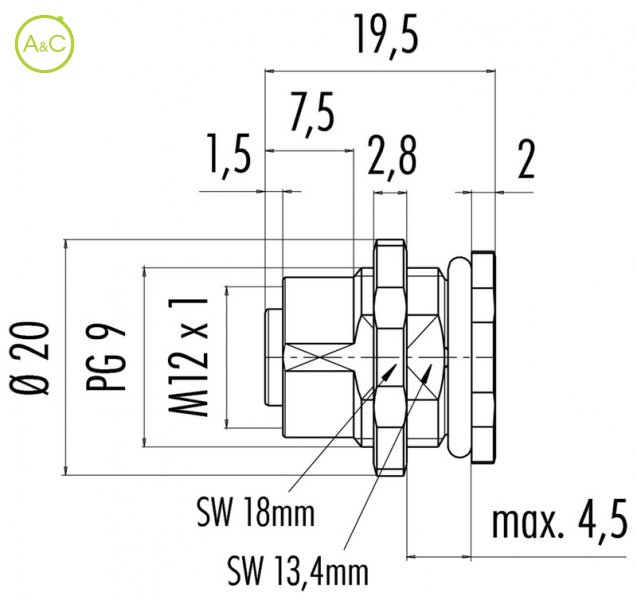

Connector Diameter 20 mm
Number Of Contacts 4 contacts
Connector Locking System Screw (M12-A)
Termination Solder
Wire Section 0.25 mm²
Protection Degree IP68
Mating Cycles >100 times
Upper Temperature +85 °C
Lower Temperature -40 °C
Rated Voltage 250
Rated Impuls Voltage 2500 V
Pollution Degree 3
Overvoltage Categorie II
Material Group III
Rated Current (40°) 4 A
Max. Contact Resistance 3 mΩ
Material Of Contact CuSn (Bronze)
Plating Au (Gold)
Material Of Insert PA
Material Of Housing Zinc diecasting nickel plated
Fixing Thread PG9
Fiche produit Télécharger la fiche produit
Les propriétés diffèrent selon les variantes et sous-variantes
