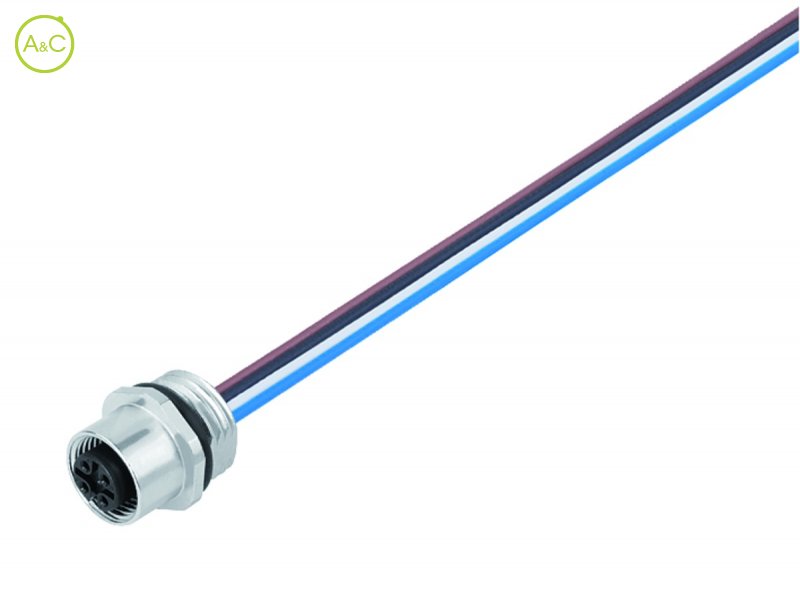

Female panel mount connector

  • Power, with single wires AWG 18, PG 9

Number Of Poles

  • 4
  • 5
Article Number 09 3432 433 04

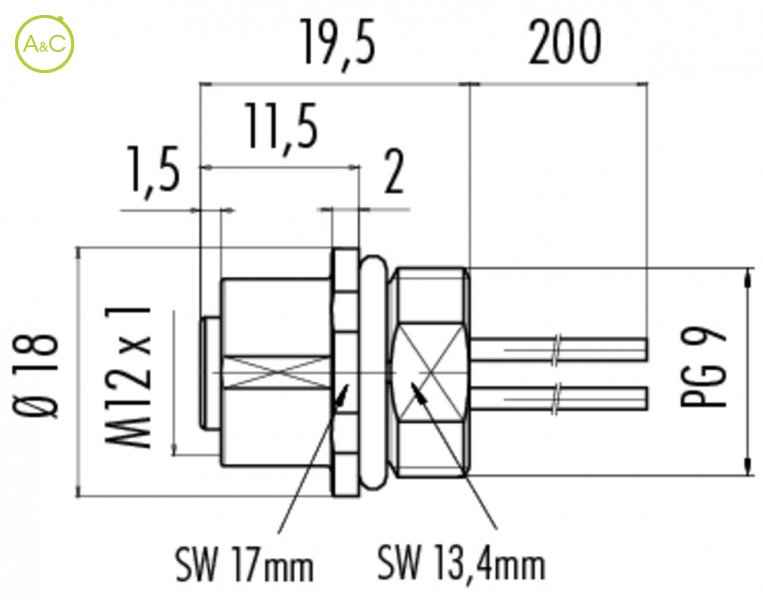

Connector Diameter 18 mm
Number Of Contacts 8 contacts
Connector Locking System Screw (M12-A)
Termination Single wires
Wire Section 0.9 mm²
Protection Degree IP67
Mating Cycles >50 times
Upper Temperature +85 °C
Lower Temperature -40 °C
Rated Voltage 250
Rated Impuls Voltage 2500 V
Pollution Degree 3
Overvoltage Categorie II
Material Group II
Rated Current (40°) 8 (pin 1-4) / 2 (pin 5) A
Max. Contact Resistance 3 mΩ
Material Of Contact CuSn (Bronze), CuZn (Brass)
Plating Au (Gold)
Material Of Insert PA
Material Of Housing Zinc diecasting nickel plated
Fixing Thread M16 x 1,5
Fiche produit Télécharger la fiche produit
Les propriétés diffèrent selon les variantes et sous-variantes
