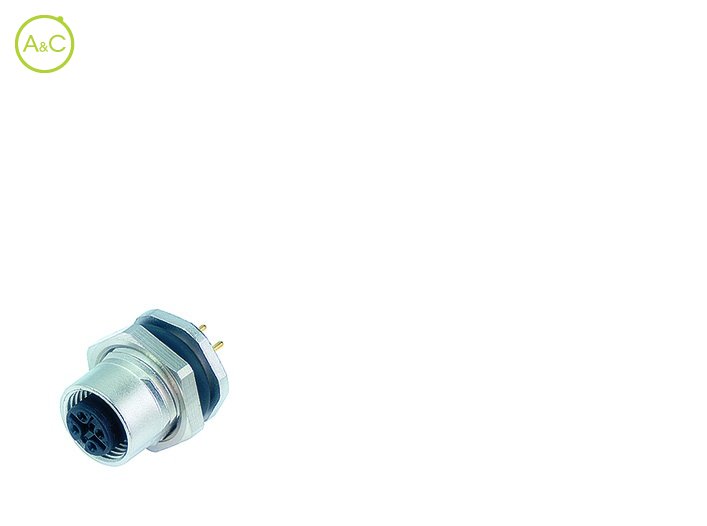

Female panel mount connector

  • Front fastened, dip solder, 6mm contact length
  • UL-approval

Number Of Poles

  • 4
  • 5
  • 5 VA/stainless steel
  • 8
  • 8 VA/stainless steel
  • 12
Article Number 86 0532 1000 00004
Old Article Number 09 3432 90 04

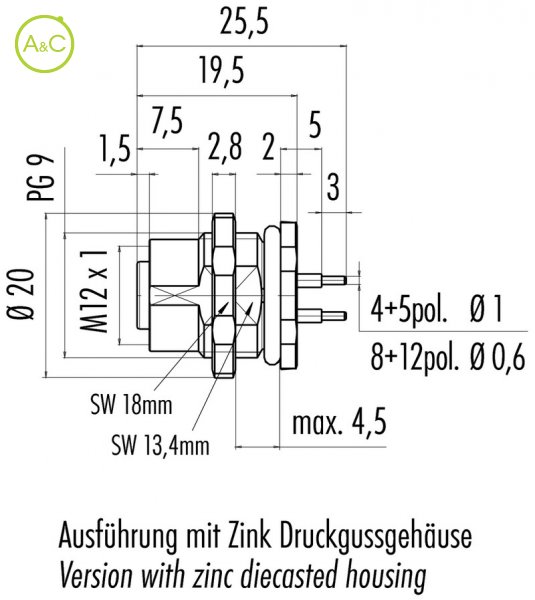

Connector Diameter 20 mm
Number Of Contacts 4 contacts
Connector Locking System Screw (M12-A)
Termination Dip solder
Protection Degree IP68
Mating Cycles >100 times
Upper Temperature +85 °C
Lower Temperature -40 °C
Rated Voltage 250
Rated Impuls Voltage 2500 V
Pollution Degree 3
Overvoltage Categorie II
Material Group II
Rated Current (40°) 4 A
Max. Contact Resistance 3 mΩ
Material Of Contact CuSn (Bronze)
Plating Au (Gold)
Material Of Insert PA
Material Of Housing Zinc diecasting nickel plated
Fiche produit Télécharger la fiche produit
Les propriétés diffèrent selon les variantes et sous-variantes
