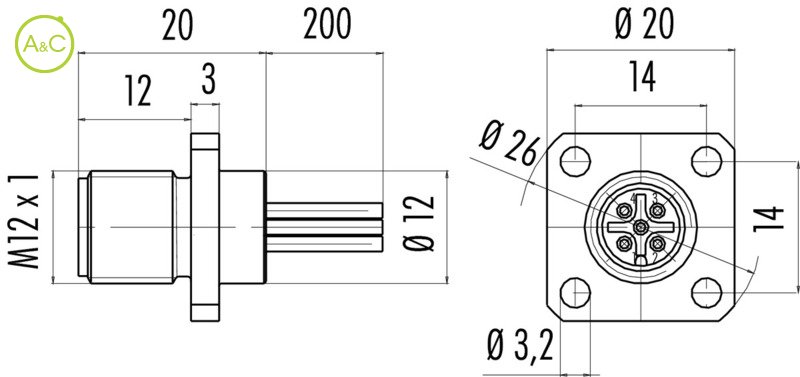

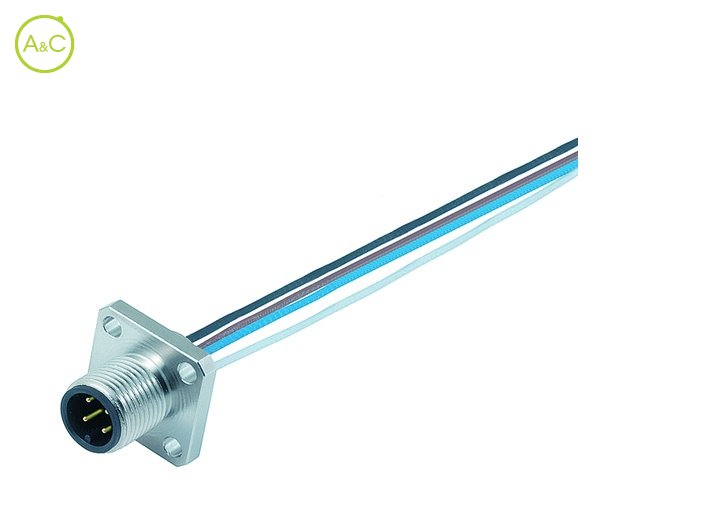

Male panel mount connector

  • Degree of protection without sealing IP40, with sealing IP67
  • UL-approval

Number Of Poles

  • 4
  • 5
  • 8
  • 12
Article Number 76 0931 0111 00004 0200
Old Article Number 09 3433 00 04
Connector Diameter 12 mm
Number Of Contacts 4 contacts
Connector Locking System Screw (M12-A)
Termination Single wires
Wire Section 0.25 mm²
Protection Degree IP40/IP67
Mating Cycles >50 times
Upper Temperature +85 °C
Lower Temperature -40 °C
Rated Voltage 250
Rated Impuls Voltage 2500 V
Pollution Degree 3
Overvoltage Categorie II
Material Group II
Rated Current (40°) 4 A
Max. Contact Resistance 3 mΩ
Material Of Contact CuZn (Brass)
Plating Au (Gold)
Material Of Insert PA
Material Of Housing brass/zinc diecasting nickel plated
Fixing Thread Socket
Fiche produit Télécharger la fiche produit
Les propriétés diffèrent selon les variantes et sous-variantes
