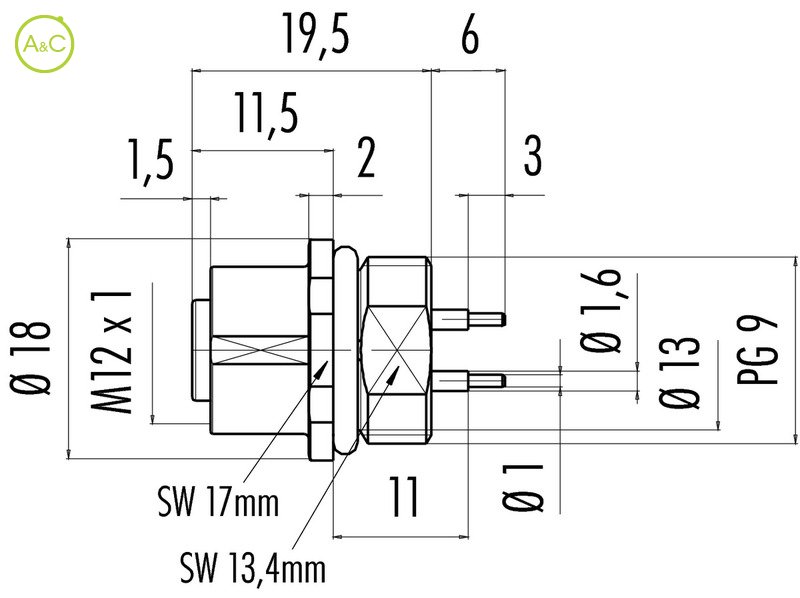

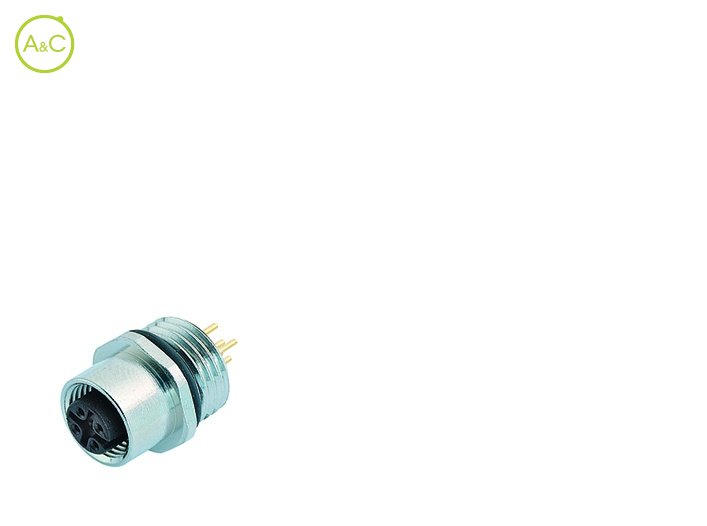

Female panel mount connector

  • Dip solder

Number Of Poles

  • 4
Article Number 09 3732 88 04
Connector Diameter 18 mm
Number Of Contacts 4 contacts
Connector Locking System Screw (M12-D)
Termination Dip solder
Protection Degree IP67
Mating Cycles >100 times
Upper Temperature +85 °C
Lower Temperature -40 °C
Rated Voltage 250
Rated Impuls Voltage 2500 V
Pollution Degree 3
Overvoltage Categorie II
Material Group II
Rated Current (40°) 4 A
Max. Contact Resistance 3 mΩ
Material Of Contact CuSn (Bronze)
Plating Au (Gold)
Material Of Insert PA
Material Of Housing Brass, zinc diecasting nickel plated
Fixing Thread PG9
Fiche produit Télécharger la fiche produit
Les propriétés diffèrent selon les variantes et sous-variantes
