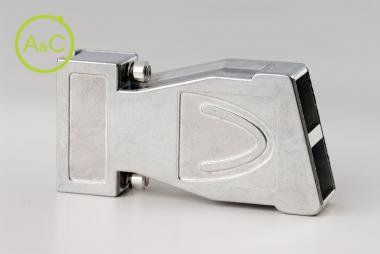

Die cast bus hood with 2 cable outputs
Avez-vous des questions sur ce produit?
Plus d’infos sur cette marque:
Provertha
![Provertha](https://www.ac-solutions.be/themes/default/images/arrow.png)
Number Of Poles
- 9

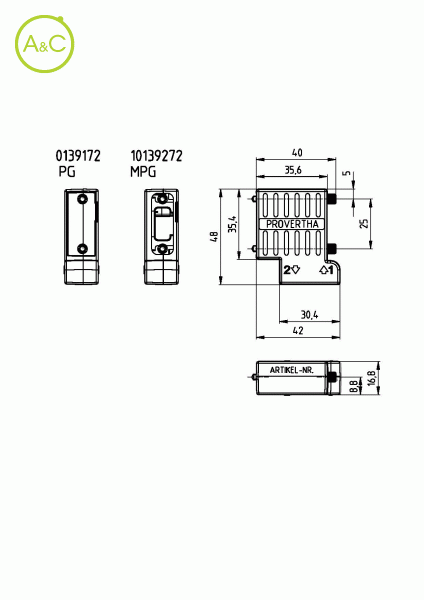

Article Number | 101 29 172 | 101 29 272 |
Number Of Contacts | 9 | 9 |
Upper Temperature | +90 °C | +90 °C |
Lower Temperature | -20 °C | -20 °C |
Thread | UNC 4-40 | UNC 4-40 |
Material | Zn alloy | Zn alloy |
Extra Information | New compact design with 2 cable outputs, ideal for bus and special applications Extremely space-saving when lined up together RF-proofed suitbale for sealed crimp flange system or screwed cable clamp Drastically reduced assembly time | New compact design with 2 cable outputs, ideal for bus and special applications Extremely space-saving when lined up together RF-proofed suitbale for sealed crimp flange system or screwed cable clamp Drastically reduced assembly time |
Number Of D-subs | 1 | 2 |
Locking Style | knurled screw | knurled screw |
Cable Exit | Angled: 2x75° ( parallel) | Angled: 2x75° ( parallel) |
Material/surface Locking Screws Diecast | St tin plated | St tin plated |
Material/surface Cover Screws | ST Zinc plated | ST Zinc plated |
Les propriétés diffèrent selon les variantes et sous-variantes
