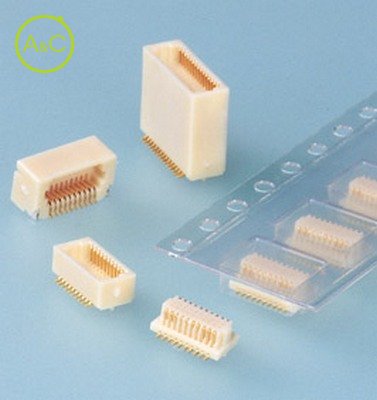

Receptacle With Bosses

JMC CONNECTOR

Avez-vous des questions sur ce produit?

Contactez notre spécialiste du connecteur

Envoyez-moi une offre personnalisée

Télécharger la fiche produit

Plus d’infos sur cette marque:

JST

Number Of Poles

Article Number	14R-JMCS-G-B-TF(S)
Number Of Contacts	14
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	0.5mm Pitch Board-to-Board Connector
Connection Type	Printed Circuit Board Connectors
Pitch / Style	0.50 mm
Rated Current (ac/dc)	0.5 A
Rated Voltage (ac/dc)	50 V
Pcb Mount Style	Surface Mount Technology (SMT)
Remark*	/

Article Number	20R-JMCS-G-B-TF(S)	20RF-JMCS-G-1B-TF
Number Of Contacts	20	20
Upper Temperature	+85 °C	+85 °C
Lower Temperature	-25 °C	-25 °C
General Description	0.5mm Pitch Board-to-Board Connector	0.5mm Pitch Board-to-Board Connector
Connection Type	Printed Circuit Board Connectors	Printed Circuit Board Connectors
Pitch / Style	0.50 mm	0.50 mm
Rated Current (ac/dc)	0.5 A	0.5 A
Rated Voltage (ac/dc)	50 V	50 V
Pcb Mount Style	Surface Mount Technology (SMT)	Surface Mount Technology (SMT)
Remark*	/	Absorption misalignment type

Article Number	24R-JMCS-G-B-TF(S)
Number Of Contacts	24
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	0.5mm Pitch Board-to-Board Connector
Connection Type	Printed Circuit Board Connectors
Pitch / Style	0.50 mm
Rated Current (ac/dc)	0.5 A
Rated Voltage (ac/dc)	50 V
Pcb Mount Style	Surface Mount Technology (SMT)
Remark*	/

Article Number	30R-JMCS-G-B-TF(S)	30RF-JMCS-G-1B-TF
Number Of Contacts	30	30
Upper Temperature	+85 °C	+85 °C
Lower Temperature	-25 °C	-25 °C
General Description	0.5mm Pitch Board-to-Board Connector	0.5mm Pitch Board-to-Board Connector
Connection Type	Printed Circuit Board Connectors	Printed Circuit Board Connectors
Pitch / Style	0.50 mm	0.50 mm
Rated Current (ac/dc)	0.5 A	0.5 A
Rated Voltage (ac/dc)	50 V	50 V
Pcb Mount Style	Surface Mount Technology (SMT)	Surface Mount Technology (SMT)
Remark*	/	/

Article Number	34R-JMCS-G-B-TF(S)
Number Of Contacts	34
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	0.5mm Pitch Board-to-Board Connector
Connection Type	Printed Circuit Board Connectors
Pitch / Style	0.50 mm
Rated Current (ac/dc)	0.5 A
Rated Voltage (ac/dc)	50 V
Pcb Mount Style	Surface Mount Technology (SMT)
Remark*	/

Article Number	40R-JMCS-G-B-TF(S)	40RF-JMCS-G-1B-TF
Number Of Contacts	40	40
Upper Temperature	+85 °C	+85 °C
Lower Temperature	-25 °C	-25 °C
General Description	0.5mm Pitch Board-to-Board Connector	0.5mm Pitch Board-to-Board Connector
Connection Type	Printed Circuit Board Connectors	Printed Circuit Board Connectors
Pitch / Style	0.50 mm	0.50 mm
Rated Current (ac/dc)	0.5 A	0.5 A
Rated Voltage (ac/dc)	50 V	50 V
Pcb Mount Style	Surface Mount Technology (SMT)	Surface Mount Technology (SMT)
Remark*	/	Absorption misalignment type

Article Number	44RF-JMCS-G-1B-TF
Number Of Contacts	44
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	0.5mm Pitch Board-to-Board Connector
Connection Type	Printed Circuit Board Connectors
Pitch / Style	0.50 mm
Rated Current (ac/dc)	0.5 A
Rated Voltage (ac/dc)	50 V
Pcb Mount Style	Surface Mount Technology (SMT)
Remark*	/

Article Number	46R-JMCS-G-B-TF(S)
Number Of Contacts	46
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	0.5mm Pitch Board-to-Board Connector
Connection Type	Printed Circuit Board Connectors
Pitch / Style	0.50 mm
Rated Current (ac/dc)	0.5 A
Rated Voltage (ac/dc)	50 V
Pcb Mount Style	Surface Mount Technology (SMT)
Remark*	/

Article Number	50R-JMCS-G-B-TF(S)	50RF-JMCS-G-1B-TF
Number Of Contacts	50	50
Upper Temperature	+85 °C	+85 °C
Lower Temperature	-25 °C	-25 °C
General Description	0.5mm Pitch Board-to-Board Connector	0.5mm Pitch Board-to-Board Connector
Connection Type	Printed Circuit Board Connectors	Printed Circuit Board Connectors
Pitch / Style	0.50 mm	0.50 mm
Rated Current (ac/dc)	0.5 A	0.5 A
Rated Voltage (ac/dc)	50 V	50 V
Pcb Mount Style	Surface Mount Technology (SMT)	Surface Mount Technology (SMT)
Remark*	/	Absorption misalignment type

Article Number	60R-JMCS-G-B-TF(S)	60RF-JMCS-G-1B-TF
Number Of Contacts	60	60
Upper Temperature	+85 °C	+85 °C
Lower Temperature	-25 °C	-25 °C
General Description	0.5mm Pitch Board-to-Board Connector	0.5mm Pitch Board-to-Board Connector
Connection Type	Printed Circuit Board Connectors	Printed Circuit Board Connectors
Pitch / Style	0.50 mm	0.50 mm
Rated Current (ac/dc)	0.5 A	0.5 A
Rated Voltage (ac/dc)	50 V	50 V
Pcb Mount Style	Surface Mount Technology (SMT)	Surface Mount Technology (SMT)
Remark*	/	Absorption misalignment type

Article Number	64RF-JMCS-G-1B-TF
Number Of Contacts	64
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	0.5mm Pitch Board-to-Board Connector
Connection Type	Printed Circuit Board Connectors
Pitch / Style	0.50 mm
Rated Current (ac/dc)	0.5 A
Rated Voltage (ac/dc)	50 V
Pcb Mount Style	Surface Mount Technology (SMT)
Remark*	/

Les propriétés diffèrent selon les variantes et sous-variantes

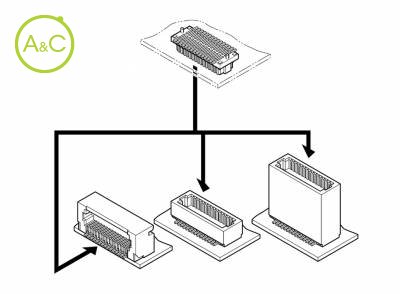

Secure mating Cantilever type contact that has a wiping effectiveness, which provides secure mating by contact lock with favourable click feeling. Guide ribs on both sides of the plug and housing toward pitch direction prevent distortion. Versatile number of circuits and height. Secure mating Cantilever type contact that has wiping effectiveness provides secure mating by contact lock with favourable click-feeling. Distortion resistant construction Guide ribs on both sides of plug and housing toward pitch direction prevent distortion. Versatile number of circuit and height Number of circuits: 14 to 64 Height: 3.0mm to 11.0mm Absorbing misalignment when mating connector The receptacle housing consists of two separated parts and has the moveable part between mating part and soldering part of contacts. This enables to absorb torsion strain and misalignment when mating connector. Standards UL Recognized E60389 CSA Certified LR20812 RoHS Compliant
