Female Connector for FVXS Connector

FVXS CONNECTOR

Avez-vous des questions sur ce produit?

Contactez notre spécialiste du connecteur

Envoyez-moi une offre personnalisée

Télécharger la fiche produit

Plus d’infos sur cette marque:

JST

Number Of Poles

Article Number	39FVXS-RSM1-GAN-TF
Number Of Contacts	39
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	0.2mm Pitch ZIF Connector for FPC
Connection Type	Printed Circuit Board Connectors
Pitch / Style	0.20 mm
Rated Current (ac/dc)	0.2 A
Rated Voltage (ac/dc)	50 V
Pcb Mount Style	Surface Mount Technology (SMT)

Article Number	51FVXS-RSM1-GAN-TF
Number Of Contacts	51
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	0.2mm Pitch ZIF Connector for FPC
Connection Type	Printed Circuit Board Connectors
Pitch / Style	0.20 mm
Rated Current (ac/dc)	0.2 A
Rated Voltage (ac/dc)	50 V
Pcb Mount Style	Surface Mount Technology (SMT)

Article Number	61FVXS-RSM1-GAN-TF
Number Of Contacts	61
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	0.2mm Pitch ZIF Connector for FPC
Connection Type	Printed Circuit Board Connectors
Pitch / Style	0.20 mm
Rated Current (ac/dc)	0.2 A
Rated Voltage (ac/dc)	50 V
Pcb Mount Style	Surface Mount Technology (SMT)

Les propriétés diffèrent selon les variantes et sous-variantes

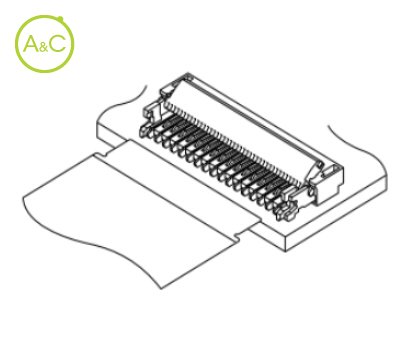

0.2mmm pitch FVXS connector for FPC has been developed for small portable equipment for which low profile and miniaturization are required. Positioning of FPC is easily conducted by inserting FPC into connector until its shoulder touches to the transverse U-shape groove. This connector also has the structure that tension due to handling of FPC is absorbed by socket and reinforcing tab. Standards UL Recognized E60389 CSA Certified LR20812 RoHS Compliant
