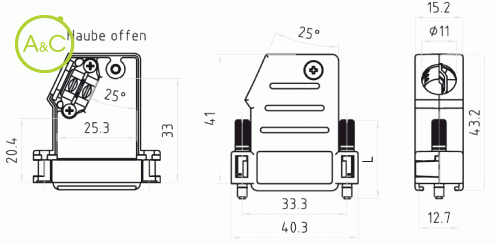

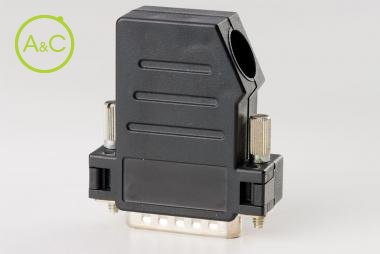

Compact D-Sub plastic hood for mixed layout connectors and standard use

  • Hoods as a set in plastic bag
Télécharger la fiche produit

Thread

  • M3
  • UNC 4-40
Article Number 47 15 5B 25 T 001 47 15 5M 25 T 001
Cable Diameter Range 5-11 mm 5-11 mm
Number Of Contacts 15 15
Upper Temperature +85 °C +85 °C
Lower Temperature -25 °C -25 °C
Cable Diameter 5-11 mm 5-11 mm
Material ABS UL 94-V0 ABS UL 94-V0
Colour Black Black
Extra Information Hood size 2 mixed layout D-Sub: 3W3 ( C)/7W2 Easy mounting due to design with helf-shell snap-in design and premounted knurled screws for locking Built-in cable clamp for the cable's strain relief Built-in dust cover collar Assembly grid in rack or device: 3 TE RoHS compliant Hood size 2 mixed layout D-Sub: 3W3 ( C)/7W2 Easy mounting due to design with helf-shell snap-in design and premounted knurled screws for locking Built-in cable clamp for the cable's strain relief Built-in dust cover collar Assembly grid in rack or device: 3 TE RoHS compliant
Hood Version black with 25 mm knurled screw Metallized with 25 mm knurled screw
Locking Style knurled screw knurled screw
Cable Exit Angled 1x25° Angled 1x25°
Starting Torque Max. 35 Ncm Max. 35 Ncm
Metallization Nickel plated Nickel plated
Les propriétés diffèrent selon les variantes et sous-variantes
Accessoires
KT KB
Cable bushing for series 17,47
KT MB
Cable bushing for series 17,47
KT GB
Cable bushing for series 17,47
KK 33 B
Cable bushings
KK 43 B
Cable bushings
KK 53 B
Cable bushings
KK 33 M
Cable bushings
KK 43 M
Cable bushings
KK 53 M
Cable bushings
KG 35 B
Cable bushings
KG 50 B
Cable bushings
KG 63 B
Cable bushings
KG 76 B
Cable bushings
KG 83 B
Cable bushings
KG 90 B
Cable bushings
KG 35 M
Cable bushings
KG 50 M
Cable bushings
KG 63 M
Cable bushings
KG 76 M
Cable bushings
KG 83 M
Cable bushings
KG 90 M
Cable bushings
KL 103 B
Cable bushings
KL 93 B
Cable bushings
KL 93 M
Cable bushings
KL 103 M
Cable bushings
