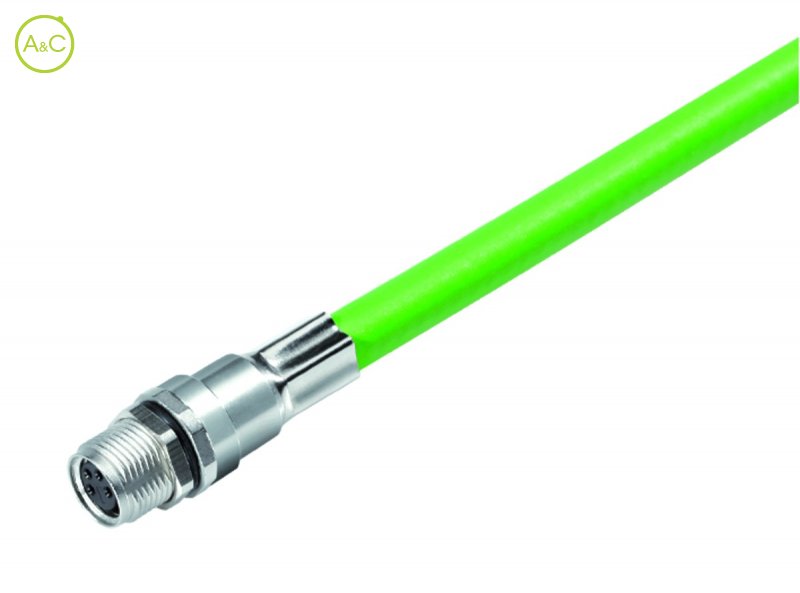

Female panel mount connector

  • Front fastened
  • With ethernet cable

Number Of Poles

  • 4
Article Number 70 3420 005 04
Connector Diameter 12.6 mm
Number Of Contacts 4 contacts
Connector Locking System Screw (M8)
Termination Dip solder
Cable Length 0.5 mm
Protection Degree IP67
Mating Cycles >50 times
Upper Temperature +60 °C
Lower Temperature -25 °C
Rated Voltage 60
Rated Impuls Voltage 800 V
Pollution Degree 3
Overvoltage Categorie II
Material Group II
Rated Current (40°) 4 A
Max. Contact Resistance 3 mΩ
Material Of Contact CuSn (Bronze)
Plating Au (Gold)
Material Of Housing PA, Zink Diecasting nickel plated, CuZn (Brass nickel plated)
Insulation Single Lead Polyolefin
Single Lead Structure 7x0,34 (AWG22)
Cable Sheath Ø 6.7 mm
Conductor Resistance 55 Ω/km
Bending Radius Cable Fixed min. 5xd
Bending Radius Cable Movable min.15xd
Material Housing Of Cable PUR green
Fiche produit Télécharger la fiche produit
Les propriétés diffèrent selon les variantes et sous-variantes
