Connecteurs
Revenir à la liste des produits

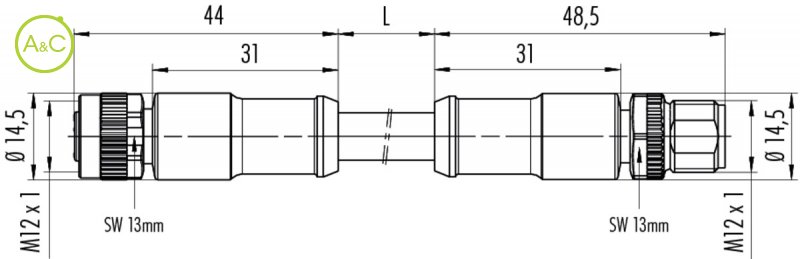

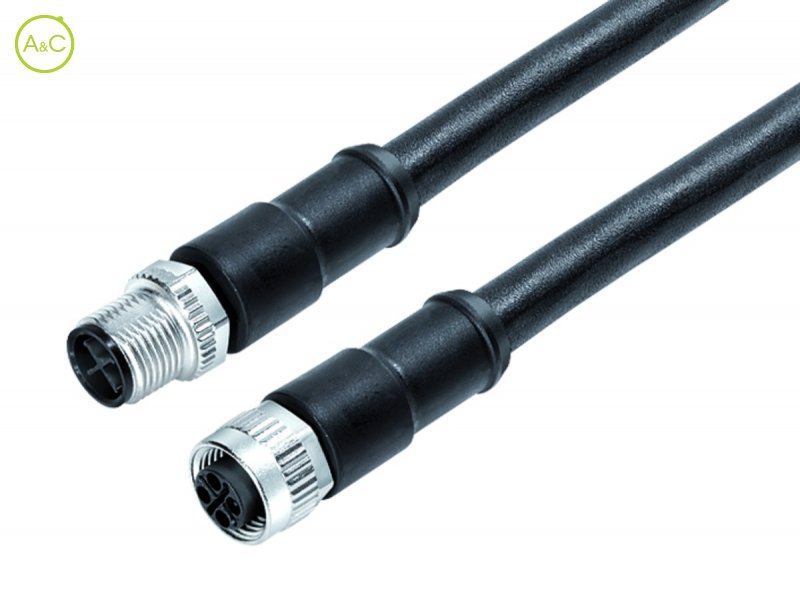

Connecting cable, male cable connector M12x1 & female cable connector M12x1
Avez-vous des questions sur ce produit?
Plus d’infos sur cette marque:
Binder
![Binder](https://www.ac-solutions.be/themes/default/images/arrow.png)
Number Of Poles
- 3+PE
Article Number | 77 0690 0689 50704 0200 | 77 0690 0689 50704 0500 |
Color | Black | Black |
Connector Diameter | 14.5 mm | 14.5 mm |
Number Of Contacts | 3+PE contacts | 3+PE contacts |
Connector Locking System | Screw(M12-S) | Screw(M12-S) |
Termination | Removable screw | Removable screw |
Wire Section | 1.5 mm² | 1.5 mm² |
Protection Degree | IP67 | IP67 |
Mating Cycles | >50 times | >50 times |
Upper Temperature | +85 °C | +85 °C |
Lower Temperature | -40 °C | -40 °C |
Rated Voltage | 630 | 630 |
Rated Impuls Voltage | 6000 V | 6000 V |
Pollution Degree | 3 | 3 |
Overvoltage Categorie | III | III |
Material Group | III | III |
Rated Current (40°) | 12 A | 12 A |
Max. Contact Resistance | 3 mΩ | 3 mΩ |
Material Of Contact | CuSn (Bronze), CuZn (Brass) | CuSn (Bronze), CuZn (Brass) |
Plating | Au (Gold) | Au (Gold) |
Material Of Insert | PA | PA |
Cable Outlet | 8-10 mm | 8-10 mm |
Wire Gauge | 16 AWG | 16 AWG |
Material Housing Of Cable | PUR | PUR |
Fiche produit | Télécharger la fiche produit |
Les propriétés diffèrent selon les variantes et sous-variantes
