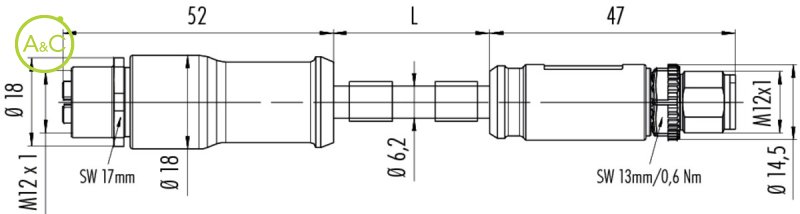

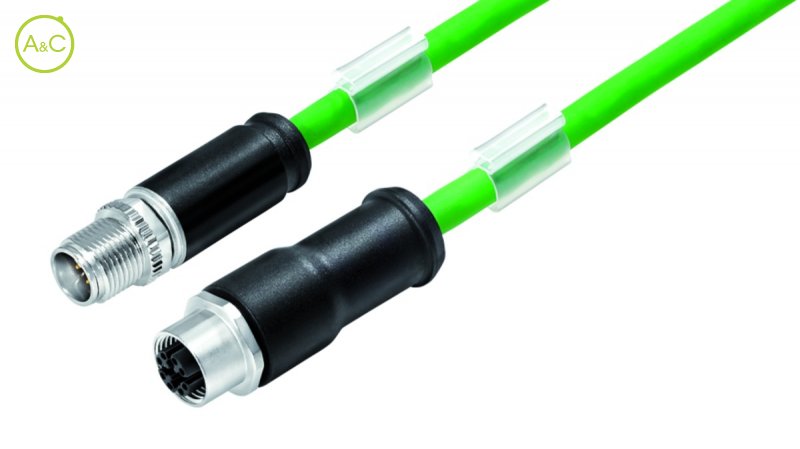

Connecting cable, male cable connector M12x1 & female cable connector M12x1

  • Shielded
  • UL-approval

Number Of Poles

  • 8
Article Number 79 9724 020 08 79 9724 050 08 79 9724 100 08
Connector Diameter 18 mm 18 mm 18 mm
Number Of Contacts 8 contacts 8 contacts 8 contacts
Connector Locking System Screw (M12-X) Screw (M12-X) Screw (M12-X)
Termination Crimp, overmoulded on cable Crimp, overmoulded on cable Crimp, overmoulded on cable
Protection Degree IP67 IP67 IP67
Mating Cycles >50 times >50 times >50 times
Upper Temperature +85 °C +85 °C +85 °C
Lower Temperature -40 °C -40 °C -40 °C
Rated Voltage 50 V AC 60 V DC 50 V AC 60 V DC 50 V AC 60 V DC
Pollution Degree 3 3 3
Overvoltage Categorie II II II
Material Group II II II
Rated Current (40°) 0.5 A 0.5 A 0.5 A
Max. Contact Resistance 10 mΩ 10 mΩ 10 mΩ
Material Of Contact CuSn (Bronze), CuZn (Brass) CuSn (Bronze), CuZn (Brass) CuSn (Bronze), CuZn (Brass)
Plating Au (Gold) Au (Gold) Au (Gold)
Material Of Insert PA PA PA
Material Of Housing PUR PUR PUR
Insulation Single Lead PE PE PE
Single Lead Structure 7x0,16 7x0,16 7x0,16
Cable Sheath Ø 6.2 mm 6.2 mm 6.2 mm
Conductor Resistance 14,5/100m Ω/km 14,5/100m Ω/km 14,5/100m Ω/km
Bending Radius Cable Fixed ≥25 mm ≥25 mm ≥25 mm
Bending Radius Cable Movable ≥50 mm ≥50 mm ≥50 mm
Wire Gauge 26/7 AWG 26/7 AWG 26/7 AWG
Material Housing Of Cable PUR Green PUR Green PUR Green
Fiche produit Télécharger la fiche produit Télécharger la fiche produit Télécharger la fiche produit
Les propriétés diffèrent selon les variantes et sous-variantes
