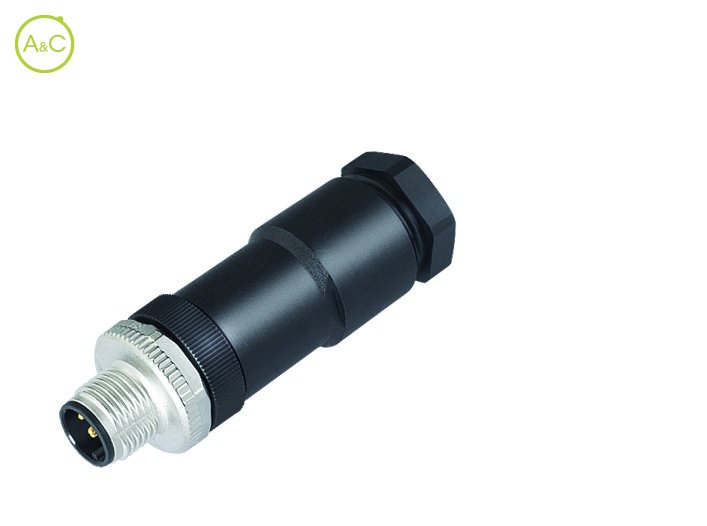

Male cable connector

Avez-vous des questions sur ce produit?

Plus d’infos sur cette marque:

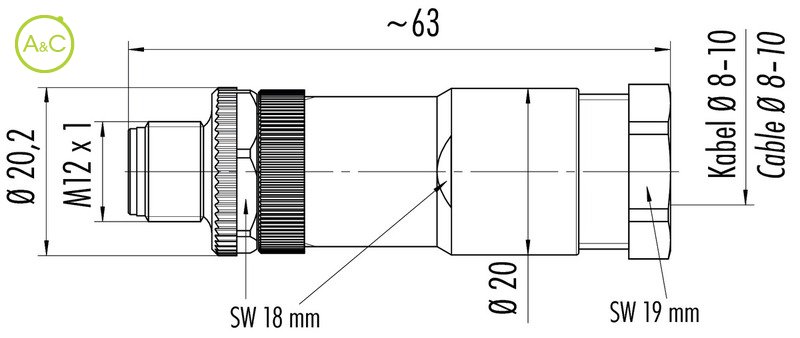

Article Number	99 0429 19 04
Connector Diameter	20.2 mm
Number Of Contacts	4 contacts
Connector Locking System	Screw (M12-A)
Termination	Screw clamp with ferules
Wire Section	1.5 mm²
Protection Degree	IP67
Mating Cycles	>100 times
Upper Temperature	+85 °C
Lower Temperature	-40 °C
Rated Voltage	250
Rated Impuls Voltage	2500 V
Pollution Degree	3
Overvoltage Categorie	II
Material Group	II
Rated Current (40°)	8 A
Max. Contact Resistance	3 mΩ
Material Of Contact	CuZn (Brass)
Plating	Au (Gold)
Material Of Insert	PA
Material Of Housing	PA
Fiche produit	Télécharger la fiche produit

Article Number	99 0437 19 05
Connector Diameter	20.2 mm
Number Of Contacts	5 contacts
Connector Locking System	Screw (M12-A)
Termination	Screw clamp with ferules
Wire Section	1.5 mm²
Protection Degree	IP67
Mating Cycles	>100 times
Upper Temperature	+85 °C
Lower Temperature	-40 °C
Rated Voltage	125
Rated Impuls Voltage	1500 V
Pollution Degree	3
Overvoltage Categorie	II
Material Group	II
Rated Current (40°)	8 (contact 1-4) / 2 (contact 5) A
Max. Contact Resistance	3 mΩ
Material Of Contact	CuZn (Brass)
Plating	Au (Gold)
Material Of Insert	PA
Material Of Housing	PA
Fiche produit	Télécharger la fiche produit

Les propriétés diffèrent selon les variantes et sous-variantes
