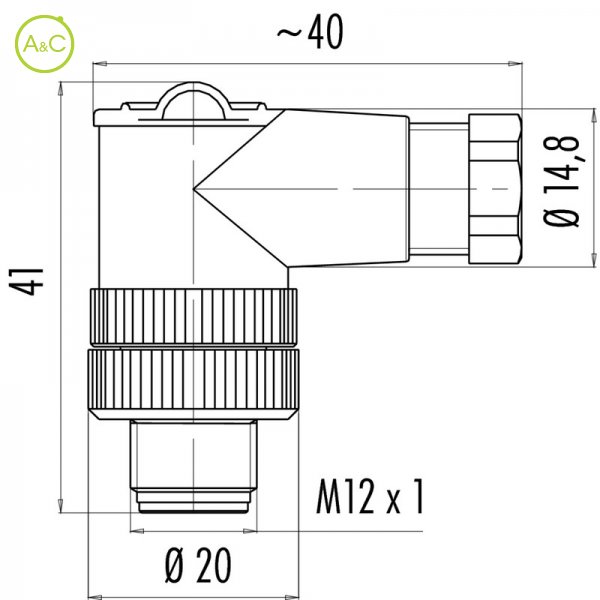

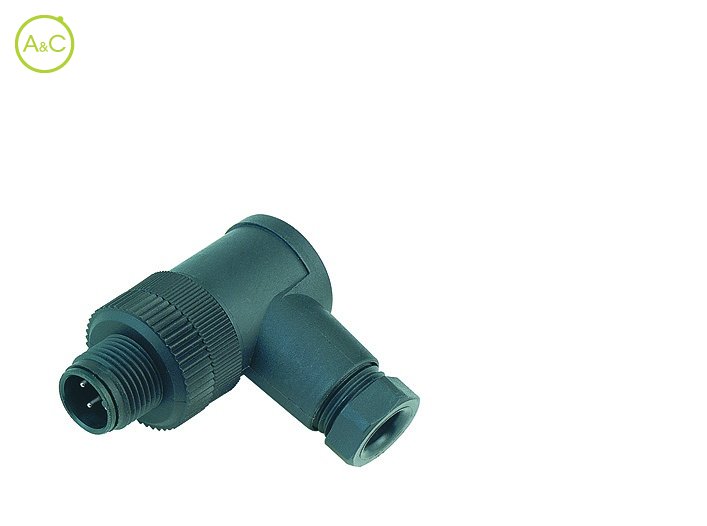

Male angled connector

  • Plastic locking system, screw clamp connection
  • UL-approval

Number Of Poles

  • 4
  • 5
Article Number 99 0429 44 04 99 0429 20 04
Connector Diameter 20 mm 20 mm
Number Of Contacts 4 contacts 4 contacts (transparent)
Connector Locking System Screw (M12-A) Screw (M12-A)
Termination Screw Screw
Wire Section 0.75 mm² 0.75 mm²
Protection Degree IP67 IP67
Mating Cycles >50 times >50 times
Upper Temperature +85 °C +85 °C
Lower Temperature -40 °C -40 °C
Rated Voltage 250 250
Rated Impuls Voltage 2500 V 2500 V
Pollution Degree 3 3
Overvoltage Categorie II II
Material Group II II
Rated Current (40°) 4 A 4 A
Max. Contact Resistance 8 mΩ 8 mΩ
Material Of Contact CuZn (Brass) CuZn (Brass)
Plating CuSnZn (Optalloy not shielded) CuSnZn (Optalloy not shielded)
Material Of Insert PA PA
Material Of Housing PBT PBT
Cable Outlet 4-6 mm 4-6 mm
Fiche produit Télécharger la fiche produit Télécharger la fiche produit
Les propriétés diffèrent selon les variantes et sous-variantes
