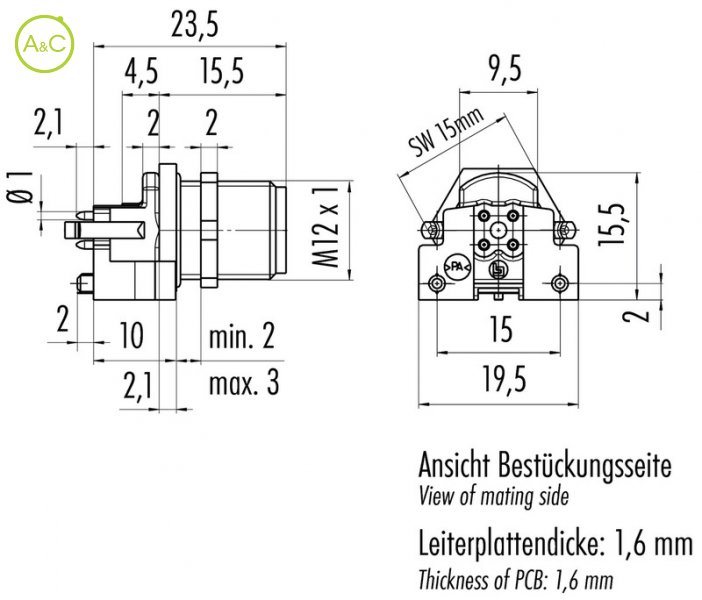

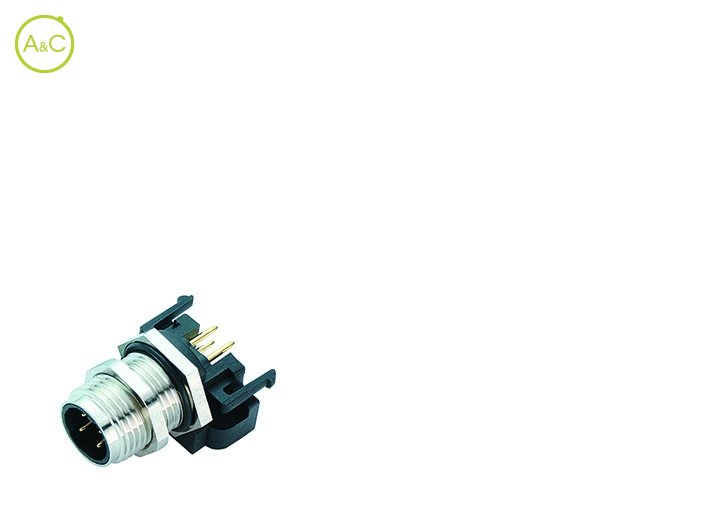

Male receptacle

  • for PCB assembly, straight
  • UL-approval

Number Of Poles

  • 4
  • 4 (with shielding sheet)
  • 5
  • 5 (with shielding sheet)
  • 8
  • 8 (with shielding sheet)
Article Number 99 3431 200 04
Connector Diameter 19.5 mm
Number Of Contacts 4 contacts
Connector Locking System Screw (M12-A)
Termination Dip solder
Protection Degree IP68
Mating Cycles >100 times
Upper Temperature +85 °C
Lower Temperature -40 °C
Rated Voltage 250
Rated Impuls Voltage 2500 V
Pollution Degree 3
Overvoltage Categorie II
Material Group III
Rated Current (40°) 4 A
Max. Contact Resistance 3 mΩ
Material Of Contact CuZn (Brass)
Plating Au (Gold)
Material Of Insert PA
Material Of Housing CuZn (Brass nickel plated)
Fiche produit Télécharger la fiche produit
Les propriétés diffèrent selon les variantes et sous-variantes
