Female panel mount connector

Avez-vous des questions sur ce produit?

Plus d’infos sur cette marque:

Article Number	99 4221 300 04
Number Of Contacts	3+PE contacts
Connector Locking System	Bolted
Termination
Protection Degree	IP67
Mating Cycles	>50 times
Upper Temperature	+100 °C
Lower Temperature	-40 °C
Rated Voltage	400
Pollution Degree	3
Overvoltage Categorie	III
Material Group	III
Rated Current (40°)	16 A
Max. Contact Resistance	≤ 5 mΩ
Material Of Contact	CuSn (Bronze)
Plating	Ag (Silver)
Material Of Insert	PBT
Material Of Housing	PBT
Cable Outlet	7-17 mm
Fiche produit	Télécharger la fiche produit

Article Number	99 4225 300 07	99 4217 300 07	99 4201 300 07
Number Of Contacts	6+PE contacts	6+PE contacts	6+PE contacts
Connector Locking System	Bolted	Bolted	Bolted
Termination
Protection Degree	IP67	IP67	IP67
Mating Cycles	>50 times	>50 times	>50 times
Upper Temperature	+100 °C	+100 °C	+100 °C
Lower Temperature	-40 °C	-40 °C	-40 °C
Rated Voltage	250	250	250
Pollution Degree	3	3	3
Overvoltage Categorie	III	III	III
Material Group	III	III	III
Rated Current (40°)	10 A	10 A	10 A
Max. Contact Resistance	≤ 5 mΩ	≤ 5 mΩ	≤ 5 mΩ
Material Of Contact	CuSn (Bronze)	CuSn (Bronze)	CuSn (Bronze)
Plating	Ag (Silver)	Ag (Silver)	Ag (Silver)
Material Of Insert	PBT	PBT	PBT
Material Of Housing	PBT	PBT	PBT
Cable Outlet	7-17 mm	7-17 mm	7-17 mm
Fiche produit	Télécharger la fiche produit	Télécharger la fiche produit	Télécharger la fiche produit

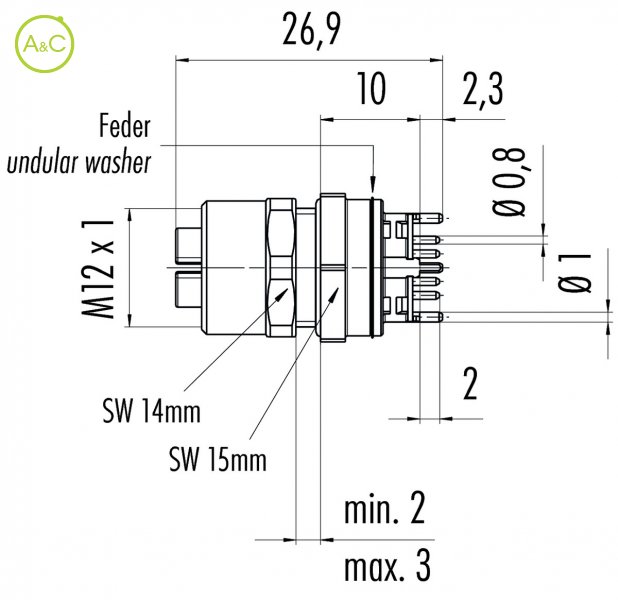

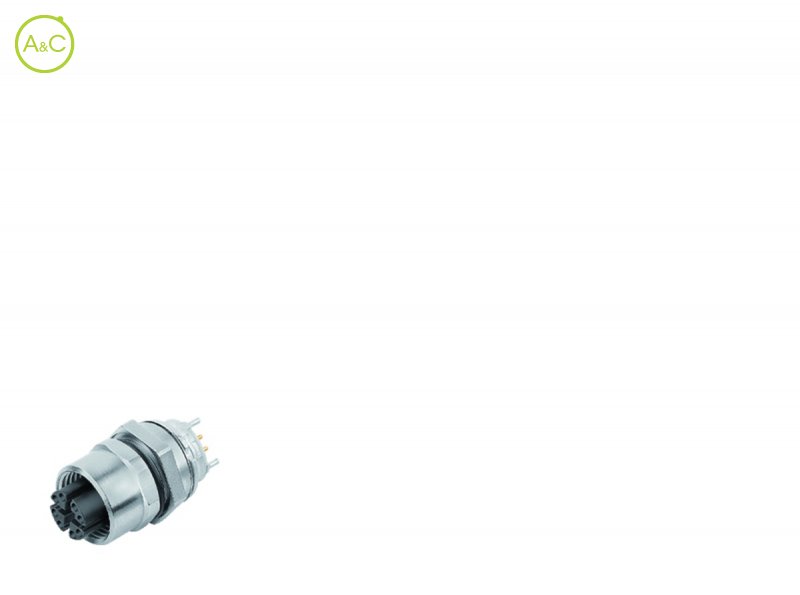

Article Number	99 3782 200 08
Number Of Contacts	8 contacts
Connector Locking System	Screw (M12-X)
Termination	Dip solder
Protection Degree	IP67
Mating Cycles	>100 times
Upper Temperature	+85 °C
Lower Temperature	-40 °C
Rated Voltage	50 AC, 60 DC
Pollution Degree	3
Overvoltage Categorie	II
Material Group	III
Rated Current (40°)	0.5 A
Max. Contact Resistance	10 mΩ
Material Of Contact	CuSn (Bronze)
Plating	Au (Gold)
Material Of Insert	PA
Material Of Housing	Zinc diecasting nickel plated
Cable Outlet	6-8 mm
Fiche produit	Télécharger la fiche produit

Les propriétés diffèrent selon les variantes et sous-variantes
