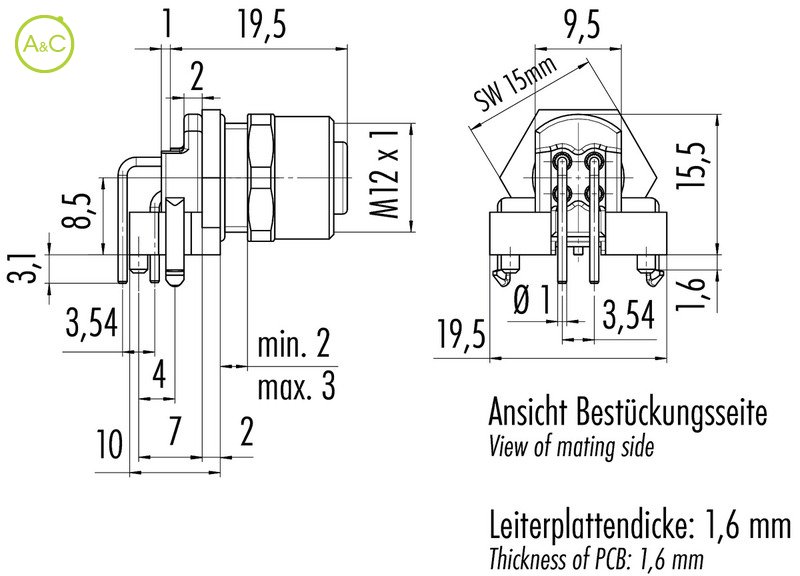

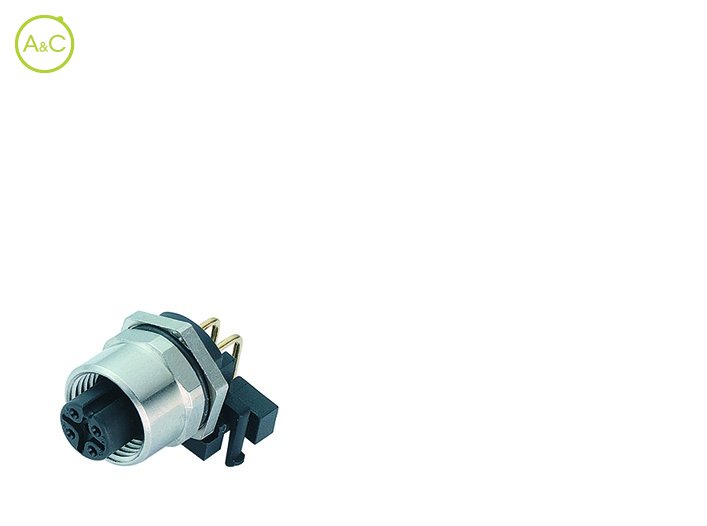

Female receptacle

  • for PCB assembly, angled
  • UL-approval

Number Of Poles

  • 5
  • 5 (with shielding sheet)
Article Number 99 4442 202 05
Connector Diameter 19.5 mm
Number Of Contacts 5 contacts
Connector Locking System Screw (M12-B)
Termination Dip solder
Protection Degree IP68
Mating Cycles >100 times
Upper Temperature +85 °C
Lower Temperature -40 °C
Rated Voltage 125
Rated Impuls Voltage 1500 V
Pollution Degree 3
Overvoltage Categorie II
Material Group II
Rated Current (40°) 4 A
Max. Contact Resistance 3 mΩ
Material Of Contact CuSn (Bronze)
Plating Au (Gold)
Material Of Insert PA
Material Of Housing CuZn (Brass nickel plated)
Fiche produit Télécharger la fiche produit
Les propriétés diffèrent selon les variantes et sous-variantes
