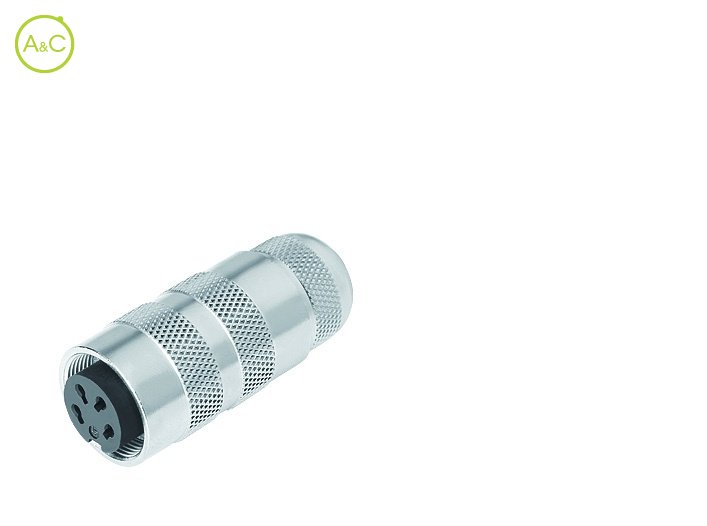

Female cable connector

  • Short version, crimp connection

Number Of Poles

  • 4
  • 5
  • 6
  • 7
  • 8
Article Number 99 5110 740 04

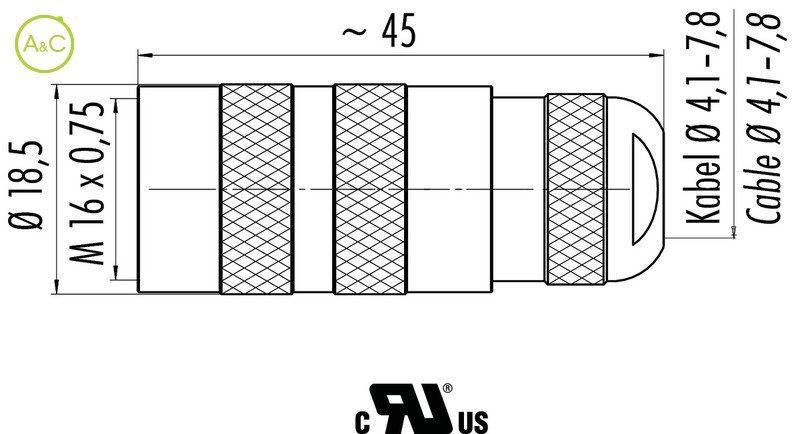

Connector Diameter 18.5 mm
Number Of Contacts 4 contacts
Connector Locking System Screw (M16)
Termination Crimp
Protection Degree IP67
Mating Cycles >500 times
Upper Temperature +95 °C
Lower Temperature -40 °C
Rated Voltage 250 (32)
Rated Impuls Voltage 1500 V
Pollution Degree 1 (2)*
Overvoltage Categorie I (II)*
Material Group III
Rated Current (40°) 6 A
Max. Contact Resistance 3 mΩ
Material Of Contact CuSn (Bronze)
Plating Au (Gold)
Material Of Insert PBT (UL 94 V-0)
Material Of Housing CuZn (Brass, nickel plated)
Cable Outlet 4-8 mm
Remark** *In case of pollution degree 2, overvoltage category II rated voltage is reduced to 32 V.
Fiche produit Télécharger la fiche produit
Les propriétés diffèrent selon les variantes et sous-variantes
