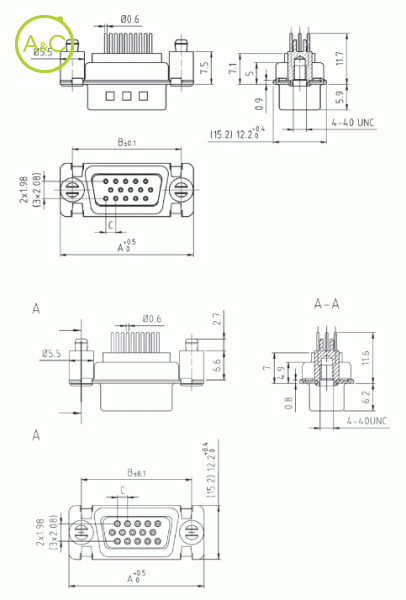

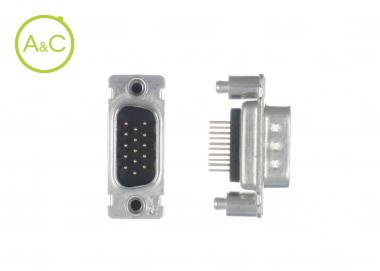

High Density Dip solder 180°

Boardlock
With machined contacts

BL4HDT 15 52 G.

BL4HDT 15 52 G.

Avez-vous des questions sur ce produit?

Contactez notre spécialiste du connecteur

Envoyez-moi une offre personnalisée

Télécharger la fiche produit

Plus d’infos sur cette marque:

Number Of Poles

15
26
44
62
78

Article Number	BL4HDT 15 52 G.	BL4HT 15 62 G.
Number Of Contacts	15	15
Upper Temperature	+125 °C	+125 °C
Lower Temperature	-55 °C	-55 °C
Contact Plating	Mating area: Au over Ni Termination area: Sn over Ni	Mating area: Au over Ni Termination area: Sn over Ni
Housing Material	St. tinned	St. tinned
Contact Material	Cu alloy	Cu alloy
Remark*	For the requested quality class please replace the "." at the end of the article no. By using 1,2,3	For the requested quality class please replace the "." at the end of the article no. By using 1,2,3
Insulation Resistance	≥10 MΩ	≥10 MΩ
Extra Information	Mounting lug distance spacer and threaded rivet in one part The connector is snapped into the circuit board in one operation, is exactly spaced and is fixed by an UNC 4-40 thread Available as board lock without bolt	Mounting lug distance spacer and threaded rivet in one part The connector is snapped into the circuit board in one operation, is exactly spaced and is fixed by an UNC 4-40 thread Available as board lock without bolt
Contact Resistance	≤10m	≤10m
Gender	Male	Female
Insulator Material	PBT GF UL 94-V0	PBT GF UL 94-V0
Mating/unmating Force Fully Loaded Connector	≤50	≤50
Air And Creepage Distance	min. 0,6 mm	min. 0,6 mm
Test Voltage U Eff	1000	1000
Working Voltage	60	60
Current Rating At 20°c	3	3
Quality Class*	Class 1 = 500 mating cycles Class 2 = 200 mating cycles Class 3 = 50 mating cycles	Class 1 = 500 mating cycles Class 2 = 200 mating cycles Class 3 = 50 mating cycles

Article Number	BL4HDT 26 52 G.	BL4HT 26 62 G.
Number Of Contacts	26	26
Upper Temperature	+125 °C	+125 °C
Lower Temperature	-55 °C	-55 °C
Contact Plating	Mating area: Au over Ni Termination area: Sn over Ni	Mating area: Au over Ni Termination area: Sn over Ni
Housing Material	St. tinned	St. tinned
Contact Material	Cu alloy	Cu alloy
Remark*	For the requested quality class please replace the "." at the end of the article no. By using 1,2,3	For the requested quality class please replace the "." at the end of the article no. By using 1,2,3
Insulation Resistance	≥10 MΩ	≥10 MΩ
Extra Information	Mounting lug distance spacer and threaded rivet in one part The connector is snapped into the circuit board in one operation, is exactly spaced and is fixed by an UNC 4-40 thread Available as board lock without bolt	Mounting lug distance spacer and threaded rivet in one part The connector is snapped into the circuit board in one operation, is exactly spaced and is fixed by an UNC 4-40 thread Available as board lock without bolt
Contact Resistance	≤10m	≤10m
Gender	Male	Female
Insulator Material	PBT GF UL 94-V0	PBT GF UL 94-V0
Mating/unmating Force Fully Loaded Connector	≤84	≤84
Air And Creepage Distance	min. 0,6 mm	min. 0,6 mm
Test Voltage U Eff	1000	1000
Working Voltage	60	60
Current Rating At 20°c	3	3
Quality Class*	Class 1 = 500 mating cycles Class 2 = 200 mating cycles Class 3 = 50 mating cycles	Class 1 = 500 mating cycles Class 2 = 200 mating cycles Class 3 = 50 mating cycles

Article Number	BL4HDT 44 52 G.	BL4HT 44 52 G.
Number Of Contacts	44	44
Upper Temperature	+125 °C	+125 °C
Lower Temperature	-55 °C	-55 °C
Contact Plating	Mating area: Au over Ni Termination area: Sn over Ni	Mating area: Au over Ni Termination area: Sn over Ni
Housing Material	St. tinned	St. tinned
Contact Material	Cu alloy	Cu alloy
Remark*	For the requested quality class please replace the "." at the end of the article no. By using 1,2,3	For the requested quality class please replace the "." at the end of the article no. By using 1,2,3
Insulation Resistance	≥10 MΩ	≥10 MΩ
Extra Information	Mounting lug distance spacer and threaded rivet in one part The connector is snapped into the circuit board in one operation, is exactly spaced and is fixed by an UNC 4-40 thread Available as board lock without bolt	Mounting lug distance spacer and threaded rivet in one part The connector is snapped into the circuit board in one operation, is exactly spaced and is fixed by an UNC 4-40 thread Available as board lock without bolt
Contact Resistance	≤10m	≤10m
Gender	Male	Female
Insulator Material	PBT GF UL 94-V0	PBT GF UL 94-V0
Mating/unmating Force Fully Loaded Connector	≤120	≤120
Air And Creepage Distance	min. 0,6 mm	min. 0,6 mm
Test Voltage U Eff	1000	1000
Working Voltage	60	60
Current Rating At 20°c	3	3
Quality Class*	Class 1 = 500 mating cycles Class 2 = 200 mating cycles Class 3 = 50 mating cycles	Class 1 = 500 mating cycles Class 2 = 200 mating cycles Class 3 = 50 mating cycles

Article Number	BL4HDT 62 62 G.	BL4HT 62 62 G.
Number Of Contacts	62	62
Upper Temperature	+125 °C	+125 °C
Lower Temperature	-55 °C	-55 °C
Contact Plating	Mating area: Au over Ni Termination area: Sn over Ni	Mating area: Au over Ni Termination area: Sn over Ni
Housing Material	St. tinned	St. tinned
Contact Material	Cu alloy	Cu alloy
Remark*	For the requested quality class please replace the "." at the end of the article no. By using 1,2,3	For the requested quality class please replace the "." at the end of the article no. By using 1,2,3
Insulation Resistance	≥10 MΩ	≥10 MΩ
Extra Information	Mounting lug distance spacer and threaded rivet in one part The connector is snapped into the circuit board in one operation, is exactly spaced and is fixed by an UNC 4-40 thread Available as board lock without bolt	Mounting lug distance spacer and threaded rivet in one part The connector is snapped into the circuit board in one operation, is exactly spaced and is fixed by an UNC 4-40 thread Available as board lock without bolt
Contact Resistance	≤10m	≤10m
Gender	Male	Female
Insulator Material	PBT GF UL 94-V0	PBT GF UL 94-V0
Mating/unmating Force Fully Loaded Connector	≤170	≤170
Air And Creepage Distance	min. 0,6 mm	min. 0,6 mm
Test Voltage U Eff	1000	1000
Working Voltage	60	60
Current Rating At 20°c	3	3
Quality Class*	Class 1 = 500 mating cycles Class 2 = 200 mating cycles Class 3 = 50 mating cycles	Class 1 = 500 mating cycles Class 2 = 200 mating cycles Class 3 = 50 mating cycles

Article Number	BL4HDT 78 52 G.	BL4HT 78 62 G.
Number Of Contacts	78	78
Upper Temperature	+125 °C	+125 °C
Lower Temperature	-55 °C	-55 °C
Contact Plating	Mating area: Au over Ni Termination area: Sn over Ni	Mating area: Au over Ni Termination area: Sn over Ni
Housing Material	St. tinned	St. tinned
Contact Material	Cu alloy	Cu alloy
Remark*	For the requested quality class please replace the "." at the end of the article no. By using 1,2,3	For the requested quality class please replace the "." at the end of the article no. By using 1,2,3
Insulation Resistance	≥10 MΩ	≥10 MΩ
Extra Information	Mounting lug distance spacer and threaded rivet in one part The connector is snapped into the circuit board in one operation, is exactly spaced and is fixed by an UNC 4-40 thread Available as board lock without bolt	Mounting lug distance spacer and threaded rivet in one part The connector is snapped into the circuit board in one operation, is exactly spaced and is fixed by an UNC 4-40 thread Available as board lock without bolt
Contact Resistance	≤10m	≤10m
Gender	Male	Female
Insulator Material	PBT GF UL 94-V0	PBT GF UL 94-V0
Mating/unmating Force Fully Loaded Connector	≤200	≤200
Air And Creepage Distance	min. 0,6 mm	min. 0,6 mm
Test Voltage U Eff	1000	1000
Working Voltage	60	60
Current Rating At 20°c	3	3
Quality Class*	Class 1 = 500 mating cycles Class 2 = 200 mating cycles Class 3 = 50 mating cycles	Class 1 = 500 mating cycles Class 2 = 200 mating cycles Class 3 = 50 mating cycles
