Shrouded Header SMT
Avez-vous des questions sur ce produit?
Plus d’infos sur cette marque:
JST
JST
Number Of Poles
- 2
| Article Number | BM02B-ACHLKS-GAN-ETF |
| Number Of Contacts | 2 |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| General Description | 1.2mm Pitch Disconnectable Crimp Style |
| Connection Type | Printed Circuit Board Connectors |
| Pitch / Style | 1.20 mm |
| Rated Current (ac/dc) | 2 (WG #28) A |
| Rated Voltage (ac/dc) | 50 V |
| Pcb Mount Style | Surface Mount Technology (SMT) |
Les propriétés diffèrent selon les variantes et sous-variantes

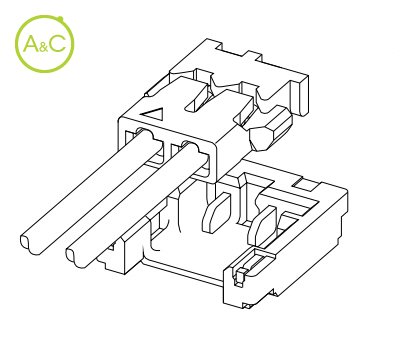

This connector has a stacking height of 1.2mm and pitch of 1.2mm.
In addition, in spite of being a compact and low profile connector, rated current is 2A with wire size AWG#28.
It is possible to use the same crimping tool and applicator that is used for the ACH Connector.
Top entry but side feed type
Connector for power supply
Corresponding to sucking nozzle of pick and place machine
RoHS Compliant
